AOC A20S431 and ACER AT1931 LCD TVs – SMPS Schematic 715T2783-1-3
ACER AT1930 – ACER AT1931
LD7575APS – STP10NK70ZFP (FET) – OZ9938GN
715T2783-1-3

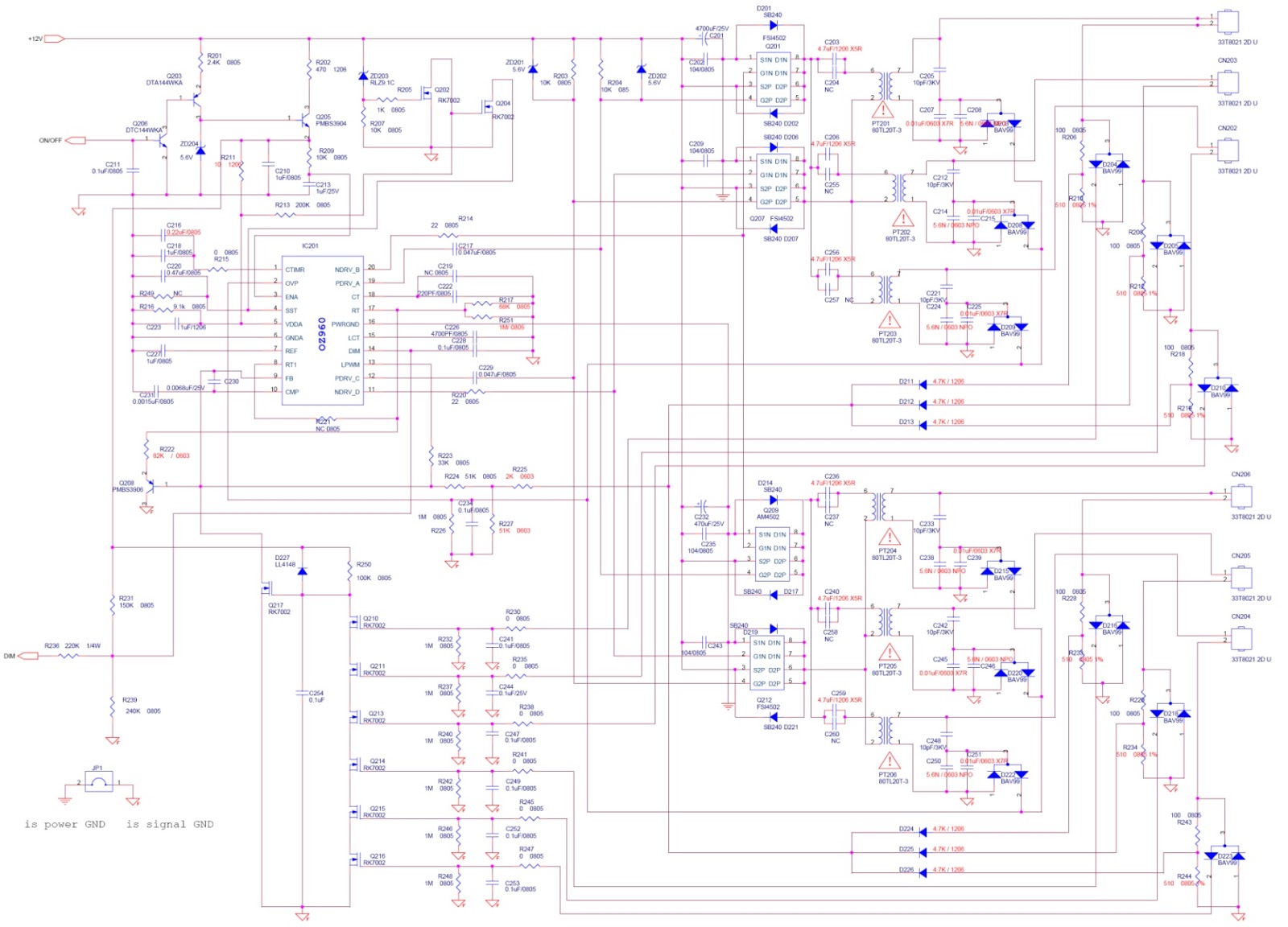

Schematic
[Click on the schematics to magnify]
AOC A20S431
SG6841 – 2SK2996 (FET) – OZ960 – AM4502
