Kalley KLED24HDT2 NTSC-M, PAL, DVB-T12 – how to enter the service mode, service alignments, audio amplifier and SMPS schematic, software update



Always respect voltages. While some may not be dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Alignment Procedure: MODELS - MS306-MS306B-MS306C-MS306D-MS306G-MS306P-MS306BP-MS306CP-MS306DP

How to enter the service mode

MS306 series chassis is designed for Asia Pacific-South America market. Both Full HD panel and HD panel can be compatible. The signal sources includeTV,AV,YPBPR or YCBCR,VGA,HDMI and USB. For YPBPR,HDMI source ,Format up to 1080p can be supported; USB support image, audio and video(up to H.264)playing; The whole process of alignment includes ADC calibration and White Balance adjustments.
Factory Menu
Methods of Entering
Method 1
Using the remote ,enter the “Picture” submenu in the OSD; choosing the “contrast” item and press the 9,7,3 and 5 in series,
Factory Menu will appear in the left top of screen
Method 2
Press RETURN button when FACTORY HOTKEY is enabled(ON).
General introduction

FACTORY MENU



Below the factory menu, some model information are showed, including software version, Project Name, SIACP Version, and SW release time.


The first step is to adjust HDMI.

Design Menu
Methods of Entering

Method 1 - Using the remote, enter the

“Picture” submenu in the OSD;

choosing the

“contrast” item and press the 1,9,5,and 0 in series

Design Menu will appear in the left top of screen.
Method 2: Press RETURN button when DESIGN HOTKEY is enabled (ON).
General introduction
DESIGN MENU



Service Menu
Methods of Entering
Using the remote, enter the “Picture” submenu in the OSD; choosing the “contrast” item and press the
9,7,0 and 5 in series, Service Menu will appear in the left top of screen
SERVICE MENU


Debugging
General Steps of debugging
According to the requirement of the order, below steps are needed for appropriate setting.
1) Enter the Factory Menu, enable FAC HOTKEY.
2) Check Project ID and the version of software, release date displayed at the bottom of Factory Menu.
3) Enter Design Menu, choose SERVICE MENU->Project ID, choose corresponding Project ID number of the product.

4) Return to Factory Menu, check the Product model.
5) Choose Factory Menu->NVM RESET and press the right button of the remote and wait until prompt OK appears.
6) Restart the set
7) According to the requirement of the order, Set the items of SHOP INIT and Hotel Menu etc.
8) After aging under normal temperature, calibrate ADC and adjust white balance.
9) Choose Factory Menu ->SHOP and press the button of remote to initialize the set.
Note: After step 9, Hotel Menu will be disabled by default. Therefore, if the order requires hotel function, it is necessary to enable hotel function by set Design MENU->Service Menu->HOTEL ENABLE to ON.
Equipments
·Color Analyzer CA-210.
·Video Pattern Generator Chroma2329.
·Color TV Pattern Generator PM5418/Fluke5418.
·VGA cable , AV(RCA) cable ,YPBPB (RCA) cable, HDMI cable etc.

ADC Calibration
 Signal and generator
PC: Chroma2329 Pattern 42,Timing 14(1024X768@60Hz 5 MOSAIC) YPBPR: Chroma2329 pattern 103, Timing 79(100% Color Bar,720p)

Steps of Calibration
1). Access to the Factory menu->ADC

2). select RGB source and see the 5 MOSAIC appear on the screen
3). Select AUTO ADC , Press the right button on the your remote to calibrate the ADC automatically.
4). Select YPBPR source and Repeat step 5.3 .
When the OK appears the calibration has been finished successfully.



White Balance adjustments (Manual)
Before adjustment ,you must make sure the ADC status(only PC and YPbPr) is “success “and Color Analyzer has been calibrated .Only AV1,YPbPr,PC,HDMI1 need to be adjusted. HDMI1 should be the first.

Signal and generator
The pattern of the signal should be used are White (Chroma2329 pattern 113) and Grey (pattern 114).
The format of signal are respectively 720P for HDMI1 (Chroma2329
Timing 69),PAL (Chroma2329 Timing38) for AV1,1024X768@60Hz(Chroma2329
Timing14) for VGA and 720P(Chroma2329 Timing79) for YPbPr.
Steps of adjustment
1).Enter the factory menu-> White Balance, select source HDMI 1 and Normal Temperature.
2).Input grey signal in 720p format.
3).Change R-OFFSET and B-OFFSET to make sure the value of color coordination equal to (X=0.280 +or-0.015;Y=0.290 +or-0.015).
4).Input white signal in 720p format.
5). Change R-GAIN and B-GAIN to make sure the value of color coordination equal to (X=0.280 +or-0.015;Y=0.290 +or-0.015).

6).Repeat step 2—5 until both of the value of color coordination of white and grey equal to (X=0.280 +or-0.015;Y=0.290 +or-0.015).
For COOL and WARM color temperature, just repeat step 2—5.The color coordination we recommend for COOL and WARM color temperature is respectively(X=0.270 +or-0.015;Y=0.270 +or-0.015) and (X=0.300 +or-0.015;Y=0.305 +or-0.015).
After the adjustment of HDMI1, you can switch to other source AV, PC and YPbPr and repeat step 1—6 to do the WB adjustment.
Note: For some small size LED panel,the color coordination of specifications is not X=0.280, Y=0.290,and we recommend you adopt the values from panel specifications.
ADC Calibration and White Balance Adjustment (automatic)
The process of adjusting ADC and White Balance automatically is out of the range of this file, Please refer to the relevant technical file of HuiZhou factory of TCL.
6.Chip list of software programming before SMT


Software update
Method of SW update:
1
.Download the bin file to the root directory of your USB device (Do not change the file name); Then insert the USB device to USB interface of TV set.
MS306 Series with its upgrade file corresponding relation as the table below show:


Upgrading method 1
1.using the remote, enter the “Picture” submenu of the OSD; choosing the “contrast” item and press 9,7,3 and 5 in series,
Factory Menu will appear in the left top of screen.
2, Select the “USB UPDATE” item , press left or right key to enter the update box;


3, Select “YES” of the dialog box and press OK button to start the update, you will see a progress box on the screen.
4, After updating , the set will reset automatically.
Upgrading method 2
1
.Press the “MEUN”button of Remote Control, then select the software update (U..> item in Option sub-menu, press the left of right key to enter the update box.

2.Press left button Select “YES” of the dialog box and to start the update, you will see a progress box on the screen.

3. After updating , the set will reset automatically.


Project ID selecting
1) Press the Menu button of remote control, then select Contrast item of Picture submenu;
press 1,9,5,0 consecutively, there you go the Design Menu.
2) Select the SERVICE MENU item, press OK and RIGHT button of the remote to enter submenu,
3) Select the PROJECT ID item, press OK or RIGHT button of the remote to enter the submenu;
4) Press the right or left button of the remote to select the ID you want;
5) After ID selection, press MENU button of the remote to exit DESIGN MENU.
6) Finally, do AC power on/off.

Audio amplifier schematic

Power supply [SMPS] and LED driver schematic




Friday, August 20, 2021

How to enter service mode of Pioneer AV receiver VSX1130, VSX930, VSX90 – service adjustments, network confirmation, software update, system reset, error information and more



Pioneer AV Receiver VSX-1130-K, VSX-930-K, VSX-930-S, VSX-90 – using  STR2A153 as SMPS control

Paste a square of acetate tape 10 × 10 mm in size onto the upper left corner of the AXX7293 shield.
Be careful NOT to conceal the MAC address printed on the shield with the acetate tape.
Be sure to paste on the acetate tape after module replacement. (Only for the European models)



Cable dressing


Contrast of PCB assemblies


PCB locations


Confirmation of the network module

Procedures:
Check if the set SSID of this unit is displayed on a device such as a PC or a smart phone, following the procedures shown below.
If the SSID is displayed on the device, the antenna connections of the Network module are normal.
If the SSID is not displayed, check the antenna cable connections on the network module.

1 Press "Home Menu" button on a remote control and select "Network Connection" from the Network, Bluetooth menu on screen.

2 Select "Wireless Direct" from the Network Connection menu.

3 Select the encryption method to "None" from Security Protocol.

4 Select "Frequency Band" at DN and select the frequency to "2.4GHz".
5 Select "OK" then press ENTER. "Setting change?" window is displayed, then select "YES" and press ENTER.

6 Select the SSID shown on the screen of this receiver.
(e.g. WirelessDirectX: XXXXXX)


How to Check on a PC Equipped with a Wireless LAN Device

Windows 7

1 Left-click on the wireless network icon on the system tray.

2 Check that the above-mentioned SSID
(WirelessDirectX:XXXXXX) is displayed on the list that appears.

How to Check on a Smartphone (Example: iPod Touch)

1 At the top screen of an iPod Touch, select Settings.

2 Select Wi-Fi.

3 Check that the above-mentioned SSID
(WirelessDirectX:XXXXXX) is displayed in the "Choose a Network" box.


Error Indications When an Abnormality in The Amplifier System is detected and How to Enter Release Mode

During Standby mode, simultaneously press and hold the "TUNE ↓" and "MULTI-ZONE ON/OFF" keys for 5 seconds.


Service mode: How to enter?

During Standby mode, simultaneously press and hold “MULTI-ZONE ON/OFF” and “ENTER” keys for 5 seconds to enter this mode. Turn off the power to this unit by setting the main volume level to “---dB” and Multi-zone to “OFF”.

How to exit

Turning off the power or pressing the RETURN key returns to the normal mode.

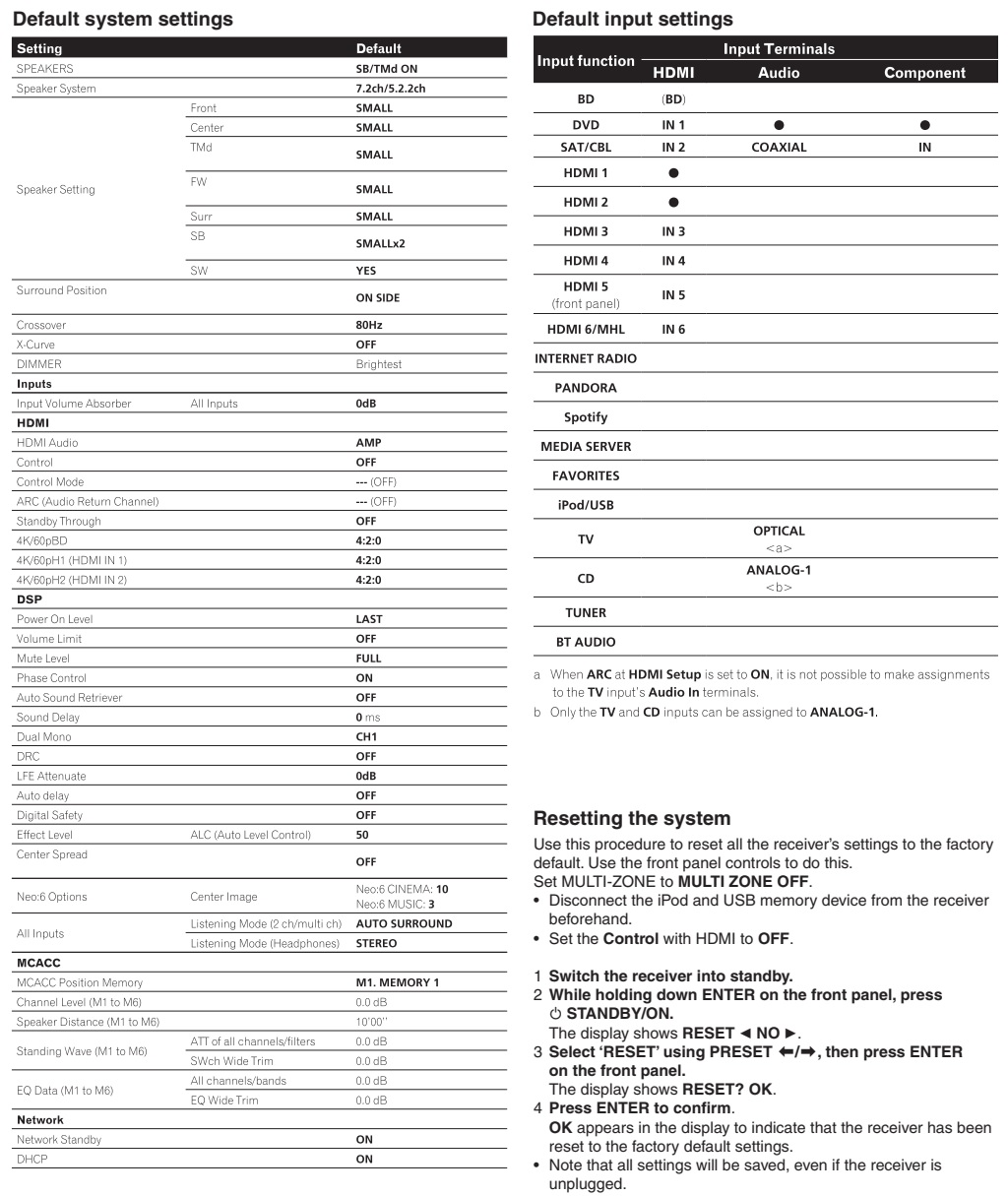

How to reset the system

Resetting the system to the factory default settings
Use this procedure to reset all the receiver’s settings to the factory default. Use the front panel controls to do this.
Set MULTI-ZONE to MULTI ZONE OFF.
• Disconnect the iPod and USB memory device from the receiver beforehand.
• Set the Control with HDMI to OFF.
1 Switch the receiver into standby.
2 While holding down ENTER on the front panel, press  STANDBY/ON.
The display shows RESET <NO>..
3 Select ‘RESET’ using PRESET
ç / è then press ENTER on the front panel.
The display shows RESET? OK.
4 Press ENTER to confirm.
OK appears in the display to indicate that the receiver has been reset to the factory default settings.
• Note that all settings will be saved, even if the receiver is unplugged.


Dressing the antenna cables


Setting and adjustment

If the adjustment is shifted or if it becomes necessary to readjust because of part replacement, etc., perform the adjustment as described below.
• Any value changed in Adjustment mode will be stored in memory as soon as it is changed. Before readjustment, take note of the original values for reference in case you need to restore the original settings.
• Use a stable AC power supply.

Adjustment required when the unit is repaired or replaced


USB backup and Updating the Firmware

USB backup

This model is capable of saving the set values stored in the MAIN Ucom of DMAIN Assy in the USB and loading them in a new DMAIN Assy. (Note that MAIN Ucom should normally operate to enable this function.)
When replacing DMAIN Assy, execute the above mentioned processes


Requirements for USB memory
USB memory to be used should meet the following requirements.
• Compatible with USB Mass storage Class
• With a file system of FAT (FAT32)
File saving format
Files are to be saved in the following format:
Example: VSX-1130_BK01.avr
How to save in the USB memory from AV amplifier
1. Insert the usable USB memory into the USB terminal when the main device is off.
2. Enter the SERVICE MODE and select [USB BAK c HOLD d] with g keys.  [See  TEST MODE] for how to enter the SERVICE MODE.)
3. Select [USB BAK c SAVE? d ] with h keys and press [ENTER].
Note: The system cannot execute SAVE, LOAD until start is completed of Network module.
4. Saving in the USB starts and the main device automatically goes off after the normal completion ([COMPLETE] is displayed.).
5. Remove the USB and saving is finished.
*1. If the following errors occur after "SAVE" is executed, error message will be displayed and "SAVE" will be stopped and the power will be turned off.
• Ejecting of USB device
• Short capacity of USB device
• Error during writing in the USB device (Read Only or defective Sector, etc.)
*2. If the same file name exists in the USB, overwriting will be automatically executed.
How to write into AV amplifier from the USB memory
1. Insert the USB with the saved file into the USB terminal when the main device is off.
2. Enter the TEST MODE and select [USB BAK c HOLD d] with g keys.
[See TEST MODE] for how to enter the TEST MODE.)
3. Select [USB BAK c LOAD? d ] with h keys and press [ENTER].
4. Saving in the main device starts and it automatically goes off after the normal completion ([COMPLETE] is displayed.).
5. Remove the USB and loading is finished.
* If the following errors occur after "LOAD" is executed, error message will be displayed and "LOAD" will be stopped and the power will be turned off.
• No setting file
• Mismatching between the setting file and the specification of the A/V RECEIVER type to be loaded back
• Error due to Checksum, Signature Check, and Size Check
• Ejecting of USB device (during reading of the setting file)
Precautions
• Files are stored in Root of USB memory.
• Files are read from Root of USB memory.
To make operations such as moving files, be sure to assign the saved file in Root of the USB memory.
Also please be careful not to assign *.avr in multiple numbers.
• The time and date of updating for saved file is fixed to "2006/03/08 20:01."
• In principle, please implement Load without making of factory default settings.
• Depending on the type of USB memory device, the setting file may not have properly been saved even though [COMPLETE] is displayed after a SAVE process.
Before replacing the DMAIN Assy, perform a LOAD process and check that [COMPLETE] is displayed.

UPDATING OF THE FIRMWARE

Workflow


MAIN com, SUB com (EVENT), DSP Flash ROM and Network module Update by USB Memory and the Confirmation of the Version

UPDATE PANEL Mode (Version update)

Copy the UPDATE FILE to the root directory of the USB Memory.
Note: NEVER copy several UPDATE FILES to the root directory of the USB Memory.
Copy only the corresponding UPDATE FILE.
Enter the UPDATE PANEL mode.
Check a current version.
2. Turn off the power to this unit by setting Multi-Zone to "OFF".
3. Connect the USB Memory to the USB terminal (A type) of the front panel.
1. While holding down
"TUNE" key on the front panel, press "STANDBY ON/OFF" key and moves to the UPDATE PANEL mode.
2. The updating process is as follows.


Update time is fluctuated by contents of the update. It will take about 26 minutes at the maximum.
(Actual time is from 3 minutes to 26 minutes.)
Time required for updating varies, because only the programs that require updating will be updated.

Confirmation
Enter UPDATE PANEL mode and check that the programs have been updated.

Idle current adjustment

When any component parts which are within the red square on the following circuit diagram are replaced, the idle current adjustment of that channel is required. (Idle current adjustment for another channel is not required.)
However, when any capacitors are replaced, the adjustment is not required.
(The following circuit diagram is for SL channel, but another channel also has same circuit diagram and same adjustment is required)
