LG 55LB630V - LG 55LB631V LCD TV - TROUBLESHOOTING - No Power _ No Audio

55LB630V - 55LB631V _ LG LCD TV _ Troubleshooting _ No Power _ No Sound [picture OK] _ Display Error
NO POWER

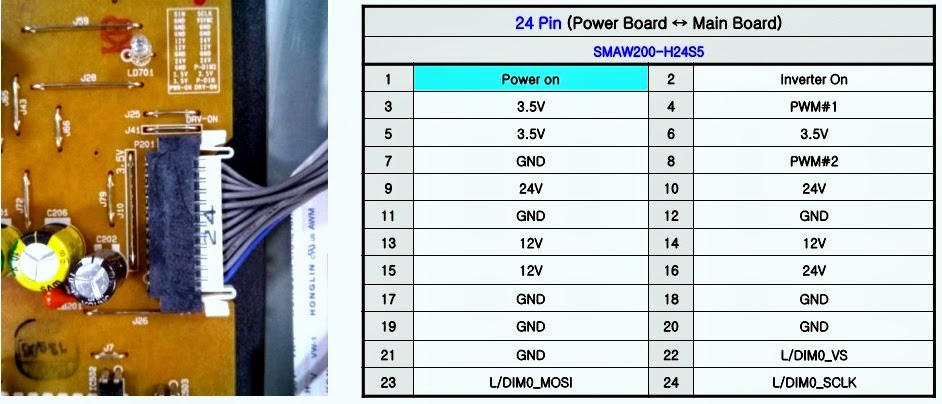

Check power input voltage and ST-BY 3.5V
Checking method when power is ON [Check Power On pin is HIGH]
Power error _Off when on, off whiling viewing [POWER OFF MODE checking method]
* Press the IN-START button of the remote controller for adjustment
* Check the entry into adjustment item 3
AUDIO ERROR No audio/Normal video-3 [Checking method in menu when there is no audio]
* Press the Setting button on the remote controller
* Select the Sound function of the Menu
* Select the Sound Out
* Select TV Speaker
Voltage and speaker checking method when there is no audio
> Check the contact condition of or 24V connector of Main Board
> Measure the 24V input voltage supplied from Power Board (If there is no input voltage, remove and check the connector)
> Connect the tester RX1 to the speaker terminal and if you hear the Chik Chik sound when you touch the GND and output terminal, the speaker is normal.
REMOTE CONTROLLER OPERATION CHECKING [Function error_ No response in remote controller, key error]
* Check IR cable condition between IR & Main board
* Check the St-by 3.5V on the terminal 16.
When checking the Pre-Amp when the power is in ON condition, it is normal when the Analog Tester needle moves slowly, and defective when it does not move at all.
COLOR ERROR Display has error especially color [V-Com checking and adjust method]
* Press the ADJ button on the remote controller for adjustment.
* Enter into V-Com of item 14.
* Check and adjust V-Com value.
CLICK ON THE PICTURES TO MAGNIFY
