How to replace HTC Desire 510 Front and Main Cameras.

HTC Desire 510 / RIO - How to disassemble the device and replace the main or front camera

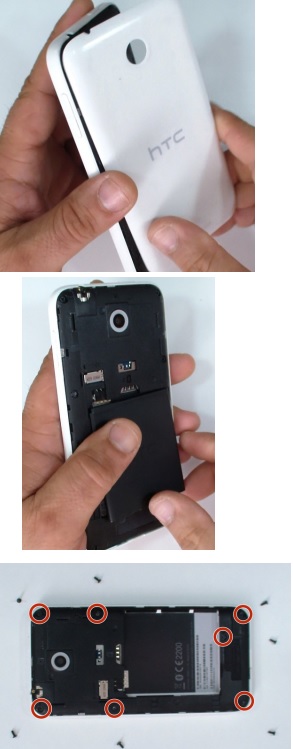

BATTERY REMOVAL
Switch off the phone, remove the battery and any installed SIM and memory cards
Remove 7x Torx T5 screws.
Use a plastic tool to remove the rear bezel
The loudspeaker is on the inner side of the rear bezel.
FLEX CABLES DISCONNECTING
Disconnect the touch screen flex cable.
Disconnect the light sensor flex cable.
Unstuck the vibra-motor from the middle frame.
Remove the coaxial antenna cable from the middle frame.
The LCD display flex cable is connected to the bottom side of the board.
LOGIC BOARD REMOVAL

At the upper left side, the board is held by a plastic locking clip. Use a plastic tool and start the separating from here.
Gently disconnect the LCD display flex cable.
Now remove the logic board.
Front and Main Cameras
To reassemble your device, follow these instructions in reverse order.
