DELL 2208 LCD MONITOR - SMPS AND BACK-LIGHT INVERTER SCHEMATIC

Wide LCD Monitor_DELL2208WFP _ Power supply regulator [SMPS] & Back-light inverter_Circuit Diagram.

[CLICK ON THE PICTURES TO ZOOM IN]

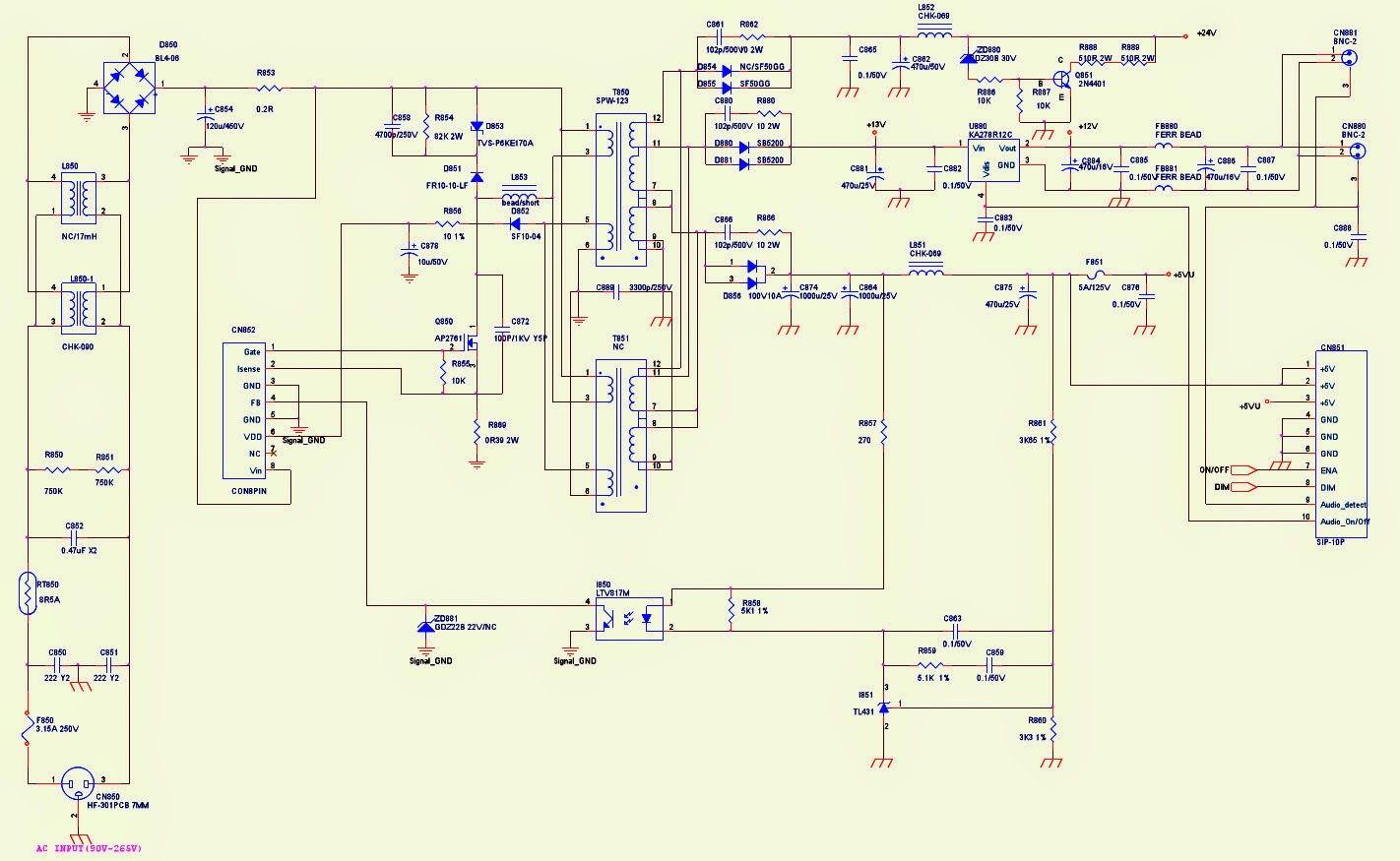

SMPS & INVERTER SCHEMATICS

PWB-FOIL SIDE
