Toshiba 19DV713B - 19DV714B - 22DV713B - 22DV714B - 26DV713B - 32DV713B - TV-DVD Combo - How to enter service mode – How to adjust the Hotel mode – Audio output amplifier and LVDS circuit diagram.
How to set hotel mode
To
set the Hotel Mode, please follow the steps below:
1. In power on mode, set the VOLUME to minimum.
2. Press and hold the [Volume –] button on the TV.
3. Simultaneously press and hold the 3 button on the remote control for more than 2 seconds. [Step 1, 2 and 3 - Service Mode]
The Hotel Mode setting menu will appear.
4. Use the [Up / Dn] button on the remote control to select your desired item, and then press ENTER.
5. Use the [Right / Left] button to set the item to your desired setting.
6. The Hotel Mode has now been set up.
1. In power on mode, set the VOLUME to minimum.
2. Press and hold the [Volume –] button on the TV.
3. Simultaneously press and hold the 3 button on the remote control for more than 2 seconds. [Step 1, 2 and 3 - Service Mode]
The Hotel Mode setting menu will appear.
4. Use the [Up / Dn] button on the remote control to select your desired item, and then press ENTER.
5. Use the [Right / Left] button to set the item to your desired setting.
6. The Hotel Mode has now been set up.
To
reset the Hotel Mode, please follow the steps below
1. In power on mode, set the [VOLUME] to minimum.
2. Press and hold the [Vokume –] button on the side panel.
3. Simultaneously press and hold the 3 button on the remote control for more than 2 seconds. The Hotel Mode setting menu will appear.
4. Use the [Up / Dn] button on the remote control to select Reset, and then press ENTER.
The setting items have now been set to their initial value.
1. In power on mode, set the [VOLUME] to minimum.
2. Press and hold the [Vokume –] button on the side panel.
3. Simultaneously press and hold the 3 button on the remote control for more than 2 seconds. The Hotel Mode setting menu will appear.
4. Use the [Up / Dn] button on the remote control to select Reset, and then press ENTER.
The setting items have now been set to their initial value.
> 1
Even if the item is set to “No Respond”, the key operation of service mode function
is effective.
> 2 Even if the three items are set to “Off”, the TV starts up in the same
settings when you turned off the power last time.
> 3 (i) Press “OK” on the option item “TV to USB” to start copying. Once it is completed, the value will switch back to “Off”.
(ii) Press “OK” on the option item “USB to TV” to start copying. Once it is completed, the value will switch back to “Off” and the TV will reboot automatically.
(iii) “All the settings” means “Hotel Menu settings” and “user menu settings” (Picture/Sound/Channel/Setup), including “ATV/DTV channel list”.
(iv) Hotel Clone cannot be enabled in the following situations:
>> Hotel Clone does not include the factory settings of Backup Zone, such as ADC, WB,Panel ID, SN data, etc.
>> The default value of the option items of Picture Setting and Picture Preference (with the exception of “Memory”) will remain unchanged even after Hotel Clone.
>> Hotel Clone cannot be enabled between different models.
>> Hotel Clone cannot be enabled between different firmware versions. If this happens, a warning message will appear as below, and the value will switch back to “Off” without any clone action.
> 3 (i) Press “OK” on the option item “TV to USB” to start copying. Once it is completed, the value will switch back to “Off”.
(ii) Press “OK” on the option item “USB to TV” to start copying. Once it is completed, the value will switch back to “Off” and the TV will reboot automatically.
(iii) “All the settings” means “Hotel Menu settings” and “user menu settings” (Picture/Sound/Channel/Setup), including “ATV/DTV channel list”.
(iv) Hotel Clone cannot be enabled in the following situations:
>> Hotel Clone does not include the factory settings of Backup Zone, such as ADC, WB,Panel ID, SN data, etc.
>> The default value of the option items of Picture Setting and Picture Preference (with the exception of “Memory”) will remain unchanged even after Hotel Clone.
>> Hotel Clone cannot be enabled between different models.
>> Hotel Clone cannot be enabled between different firmware versions. If this happens, a warning message will appear as below, and the value will switch back to “Off” without any clone action.
> 4
The maximum value that Fixed Volume can be set is based on that of Maximum
Volume. For example, if Maximum Volume is set to “30,” the volume range that
Fixed Volume can be adjusted is from 0 to 30 or off.
Audio Output Schematic

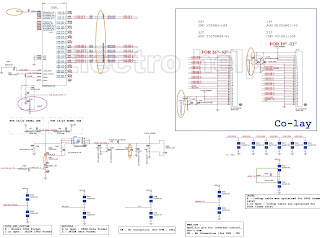

LVDS
