MARANTZ CD6002 DVD PLAYER - HOW TO UPGRADE FIRMWARE [Software Upgrade Procedure]

SOFTWARE UPDATE
Necessary equipment

Windows PC (OS: Windows2000 or WindowsXP) with Serial port.

RS-232C Dsub-9 pin cable (female to female/straight type).

Connection JIG (90M-SR4500JIG)

Update tool (FlashProg.exe, other files and folders in Flash Programmer folder)

Update data (CD6002_yymmdd_x.s24)

NOTE :The yy is two digits of year. The mm is month. The dd is date. The x is release number.

• Put the "Flash Programmer" and "software" folder into anywhere on your PC’s hard disc.
• Double click the "Flash Programmer" folder.

• Double click FlashProg.exe, and launch the Flash Programmer.  When a Flash Programmer does not launch even if double-clicked FlashProg.exe, please refer to "[B] When a Flash Programmer did not launch".
• Click OK.

Since Flash Programmer communicates with the unit automatically, the following dialog box appears when it fails in communication.

• Click the Setup in the menu bar and select the Object file.
• Click Browse

• Choose the Motorola S Format(*.s16,*.s24,*.s32)in Files of type.
• Choose the CD6002_yymmdd_x.s24, and click Open.
• Click Device tab.

NOTE: The yy is two digits of year. The mm is month. The dd is date. The x is release number.

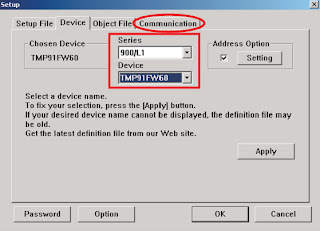

• Choose the TMP91FW60in the Device, and choose the 900/L1in the Series.
• And click Communication tab.
• Choose  the Serial port number in the COM Port.
• Check the Data Rate Manual, and choose the 38400 in the Data Rate.
• And Click OK

• Disconnect the mains cord from the unit.
• Connect the RS-232C on the connection JIG and the Serial Port of windows PC with RS-232C cable.
• Connect FFC (upside contact) to the rear panel of the unit from connection JIG.
• Connect the mains cord into the unit.
• If the connection with the Flash Programmer is successfully made, a dialogue box saying "Erase All data in this devise? (Y/N)" appears automatically. If the connection fails, error message will appear. (Ex.: E000)
• Click Yes.

• Click OK.

• Click P (Program) to start update.
• Software is written into the microprocessor.
• The writing of software takes about 50 seconds.

• If the software is updated successfully, a dialog box saying "R006: Programming completed successfully." appears.
• Click OK.
• Click  the File in the menu bar and select the Exit.
• Disconnect mains cord from the unit, and then disconnect FFC of connection JIG from the unit.

When a Flash Programmer did not launch

• Open the FlashProg.ini in the Flash Programmer folder by text editor. (EX.: Notepad, etc)
• Delete the text "OpenFile=C:\...(your PC setting)...\???.s24"

• Save the FlashProg.ini.
• Close the text editor.
• Probably you can launch the Flash Programmer.
