HOW TO DISASSEMBLE LOADING MECHANISM - OPTICAL(LASER) PICKUP - SONY DVP-NS355/NS501P/NS507P/NS525P/NS575P/NS585P



UPPER CASE

FRONT PANEL ASSEMBLY
LOADING ASSEMBLY

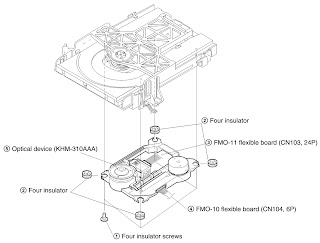

OPTICAL DEVICE [KHM-310AAA)
OPTICAL DRIVE
Laser Diode in the optical Device is very sensitive to Surge Current or Electrostatic Discharge (ESD).  After take-out FMO-24 Flexible cable from CN103 of MV-044 board immediately ground FMO-24 Flexible cable pattern using short clip. Metal paper clip can be used as short clip.
DC MOTOR & MS-203 BOARD
MV-044 BOARD
CLICK ON PICTURES TO ZOOM
