POWER SMPS AND HORIZONTAL OUTPUT SCHEMATIC - TOSHIBA 29CJZ8UR - STRX6769 (Power Switching) – PS258 (Optocoupler-voltage control) – TBF4216AS [FBT]

Toshiba 29CJ8UR - SMPS Circuit Diagram

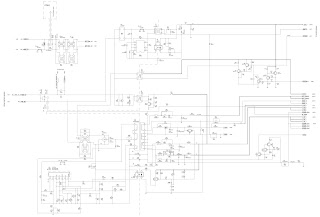

MAIN POWER SCHEMATIC

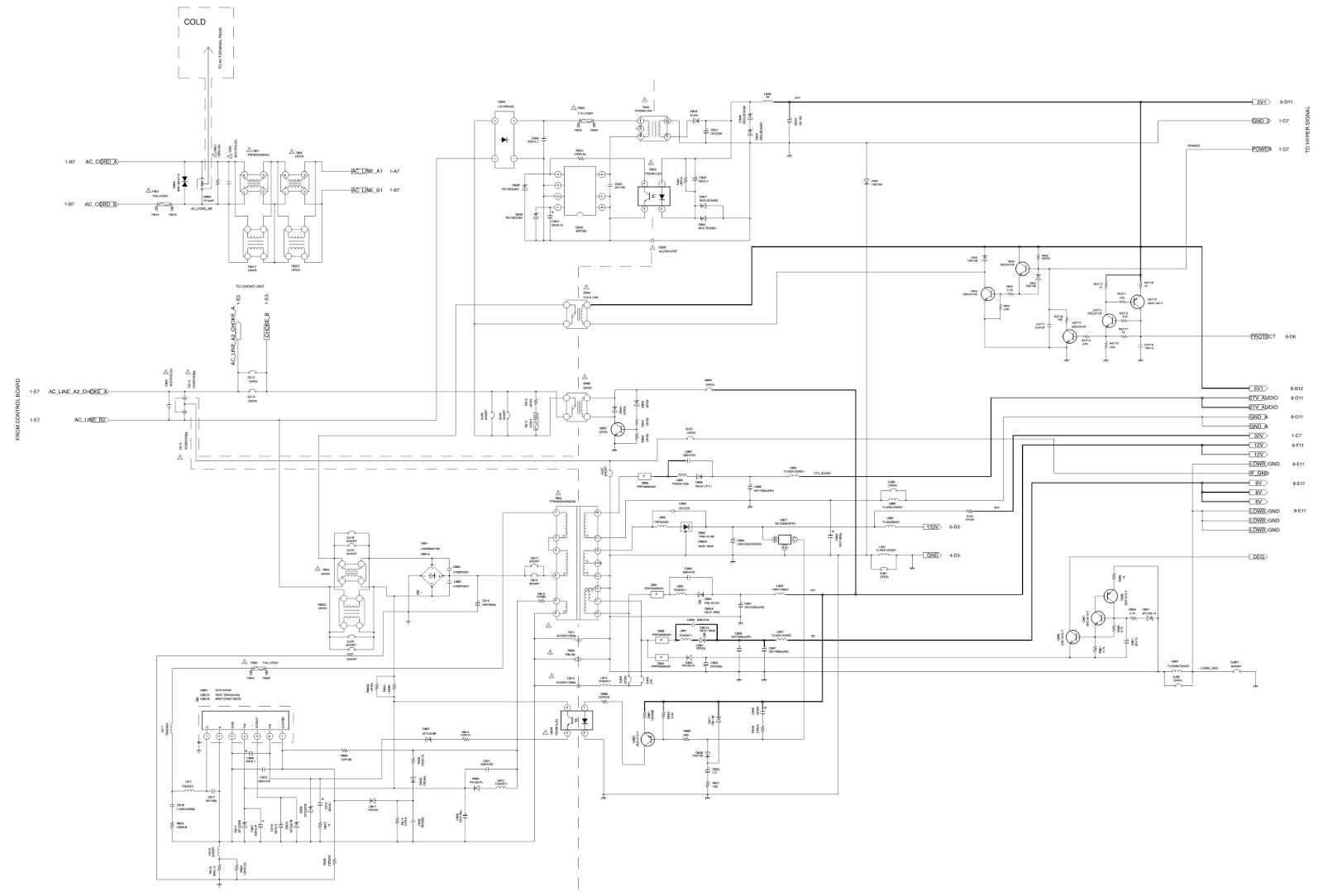

HORIZONTAL DRIVE & OUTPUT

CLICK ON SCHEMATICS TO ZOOM
