INDOOR UNIT
DIGITAL INVERTER
RAV-SM562UT-E RAV-SM562BT-E RAV-SM562CT-E
RAV-SM802UT-E RAV-SM802BT-E RAV-SM802CT-E
RAV-SM1102UT-E RAV-SM1102BT-E RAV-SM1102CT-E
RAV-SM1402UT-E RAV-SM1402BT-E RAV-SM1402CT-E
RAV-SM562UT-E RAV-SM562BT-E RAV-SM562CT-E
RAV-SM802UT-E RAV-SM802BT-E RAV-SM802CT-E
RAV-SM1102UT-E RAV-SM1102BT-E RAV-SM1102CT-E
RAV-SM1402UT-E RAV-SM1402BT-E RAV-SM1402CT-E
SUPER DIGITAL INVERTER
RAV-SP1102UT-E
RAV-SP1102UT-E
OUTDOOR UNIT
DIGITAL INVERTER
RAV-SM562AT-E RAV-SM802AT-E RAV-SM1102AT-E RAV-SM1402AT-E
SUPER DIGITAL INVERTERDIGITAL INVERTER
RAV-SM562AT-E RAV-SM802AT-E RAV-SM1102AT-E RAV-SM1402AT-E
RAV-SP562AT-E RAV-SP802AT-E
RAV-SP1102AT-E RAV-SP1402AT-E
A direct current motor is adopted for indoor fan motor in the
Concealed Duct Standard Type air conditioner.
Caused from its characteristics, a current limit works on the direct
current motor. When replacing the high-performance filter or when opening the
service board, be sure to stop the fan. If an above action is executed during
the fan operation, the protective control works to stop the unit operation, and
the check code “P12” may be issued. However it is not a trouble. When the
desired operation has finished, be sure to reset the system to clear “P12”
error code using the leak breaker of the indoor unit. Then push the operation
stop button of the remote controller to return to the usual operation.

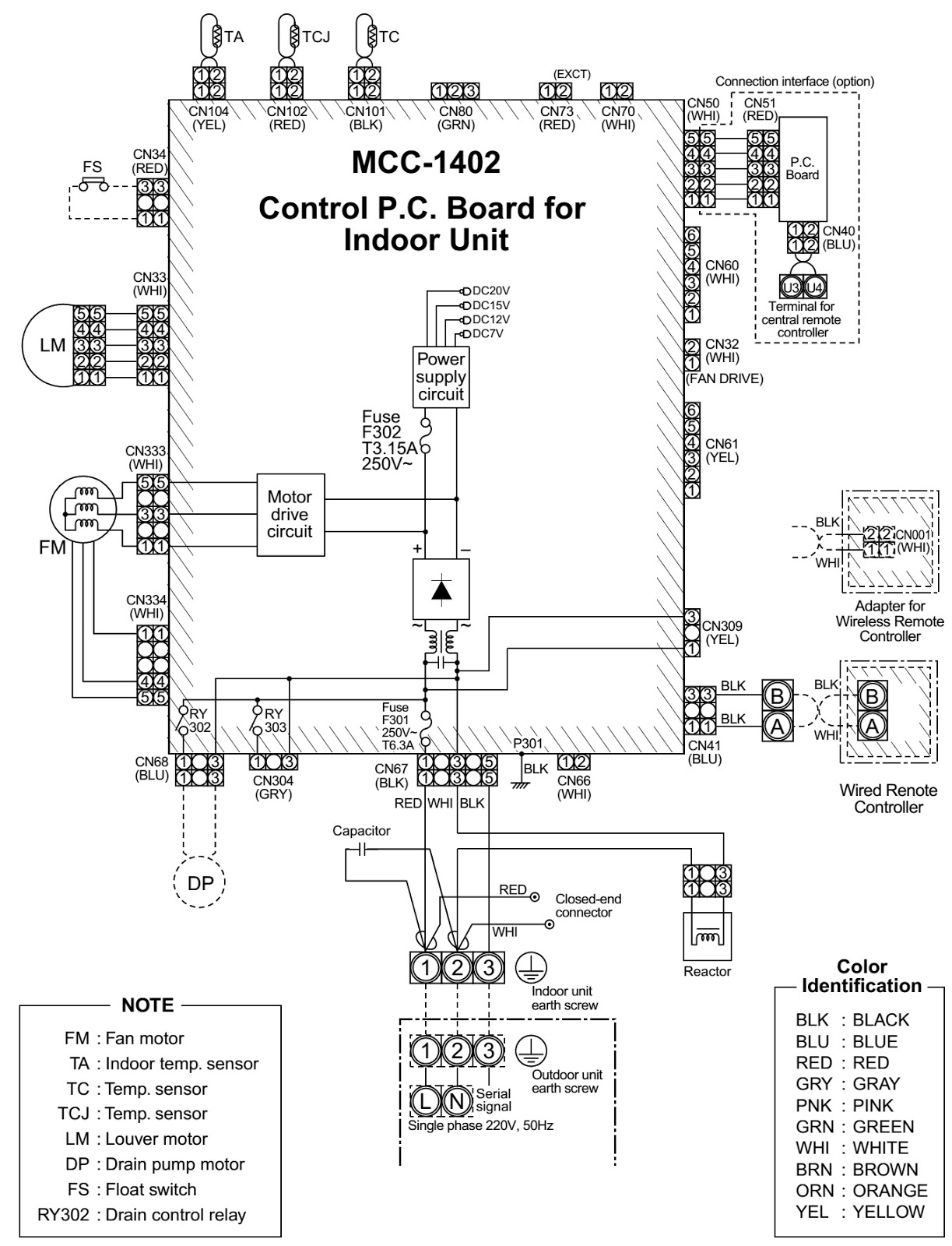

WIRING DIAGRAMS
RAV-SM562UT-E, RAV-SM802UT-E,
RAV-SM1102UT-E, RAV-SM1402UT-E, RAV-SP1102UT-E _ 4-Way Air Discharge Cassette
Type
RAV-SM562BT-E, RAV-SM802BT-E,
RAV-SM1102BT-E, RAV-SM1402BT-E _ Concealed Duct Type
RAV-SM562CT-E, RAV-SM802CT-E,
RAV-SM1102CT-E, RAV-SM1402CT-E _ Under
Ceiling Type
Outdoor Unit (Wiring Diagram)
RAV-SM562AT-E, RAV-SM802AT-E
RAV-SM1102AT-E, RAV-SM1402AT-E
RAV-SP562AT-E, RAV-SP802AT-E
RAV-SP1102AT-E, RAV-SP1402AT-E
CLICK ON THE DIAGRAMS TO MAGNIFY
