VIEWSONIC NextVision – N2010M – SMPS (Power Supply) SCHEMATIC (Circuit Diagram) - SERVICE MODE


SERVICE MODE
  • Power turn on Press “CH” and “CH” key then release “CH” and “CH” key press “menu” key go to factory mode.
  • Move the color bar to “ EPP Init”, then press “ ENTER” key.
  • Move the color bar to “ EXIT” press “ENTER” key quit factory mode, then power OFF/ON.
EEPROM Initial: Only after EEPROM replacement
  1. Power turn on Press “CH▼” and “CH▲” key then release “CH▼” and “CH▲” key press “MENU” key go to factory mode.
  2. Move the color bar to “ EPP Init”, then press “ ENTER” key.
  3. Move the color bar to “ EXIT” press “ENTER” key quit factory mode, then power OFF/ON.

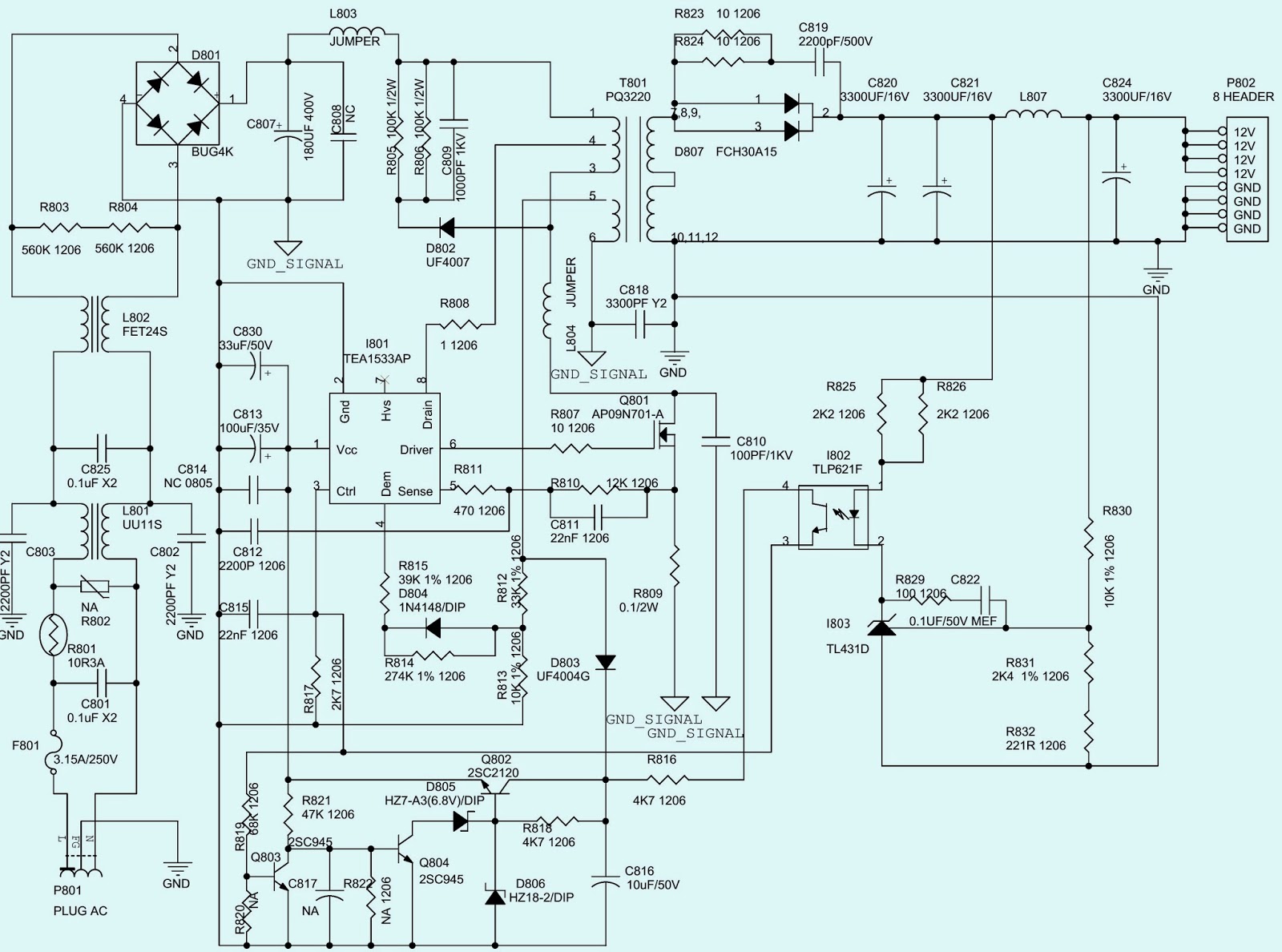

SMPS SCHEMATIC
PWB-TOP
PWB-BOTTOM
CLICK ON THE PICTURES TO ZOOM IN
