HOW TO EJECT DISC MANUALLY - JVC LT-32D200-AK - LT-32DV20-AK - HOW TO IDENTIFY THE TRANS INVERTER

TO EJECT DISC IN EMERGENCY
  • Remove the Rear Cabinet.

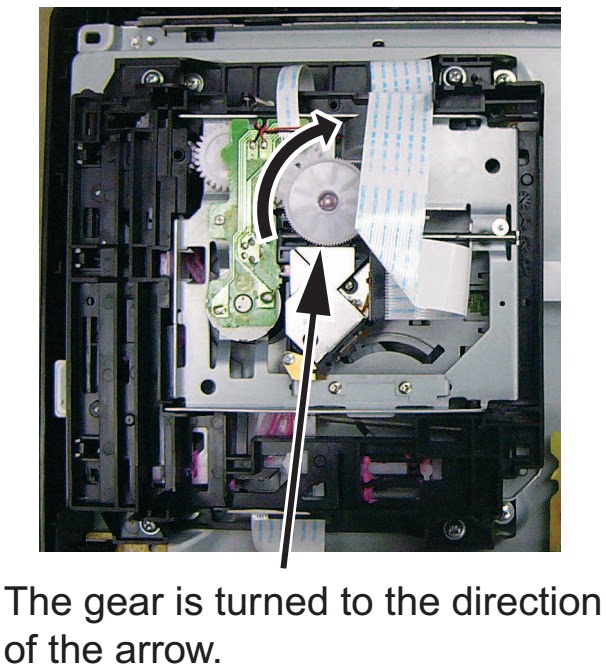

  • Rotate the gear in the direction of the arrow as shown below.
DVD MECHANISM - TOP VIEW
TRANS INVERTER IDENTIFICATION
  • When you replace one of the below Trans Inverters on INVERTER PWB, replace with the one that has same parts number.
  • For the part FU-LTZ3PZDAR007, in addition to the lot number, the letter “DARFON 7609A” is printed on the bottom of the part.
  • For the part FU-LTZ3PZ0XB009, in addition to the lot number, the letter ”3PZ0XB009 JS HVT-153” is printed on the bottom of the part.
Do not mix different parts number’s Trans Inverter.
