LG FLATRON W2243C - TROUBLESHOOTING - Lamp Inverter Schematic Diagram


NO POWER                   {Click on tables to Enlarge}

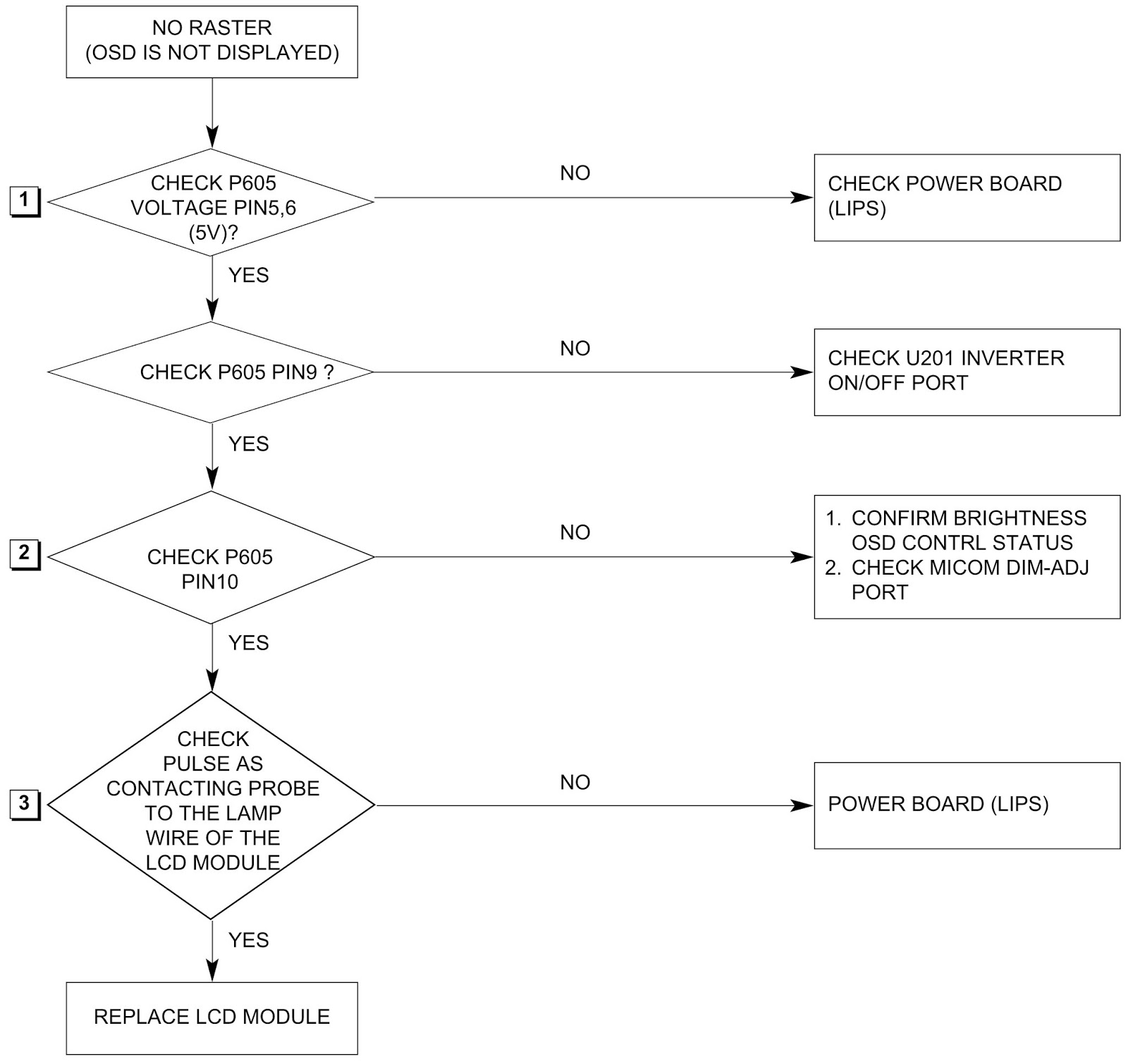

NO RASTER - NO OSD
DPM FAULT

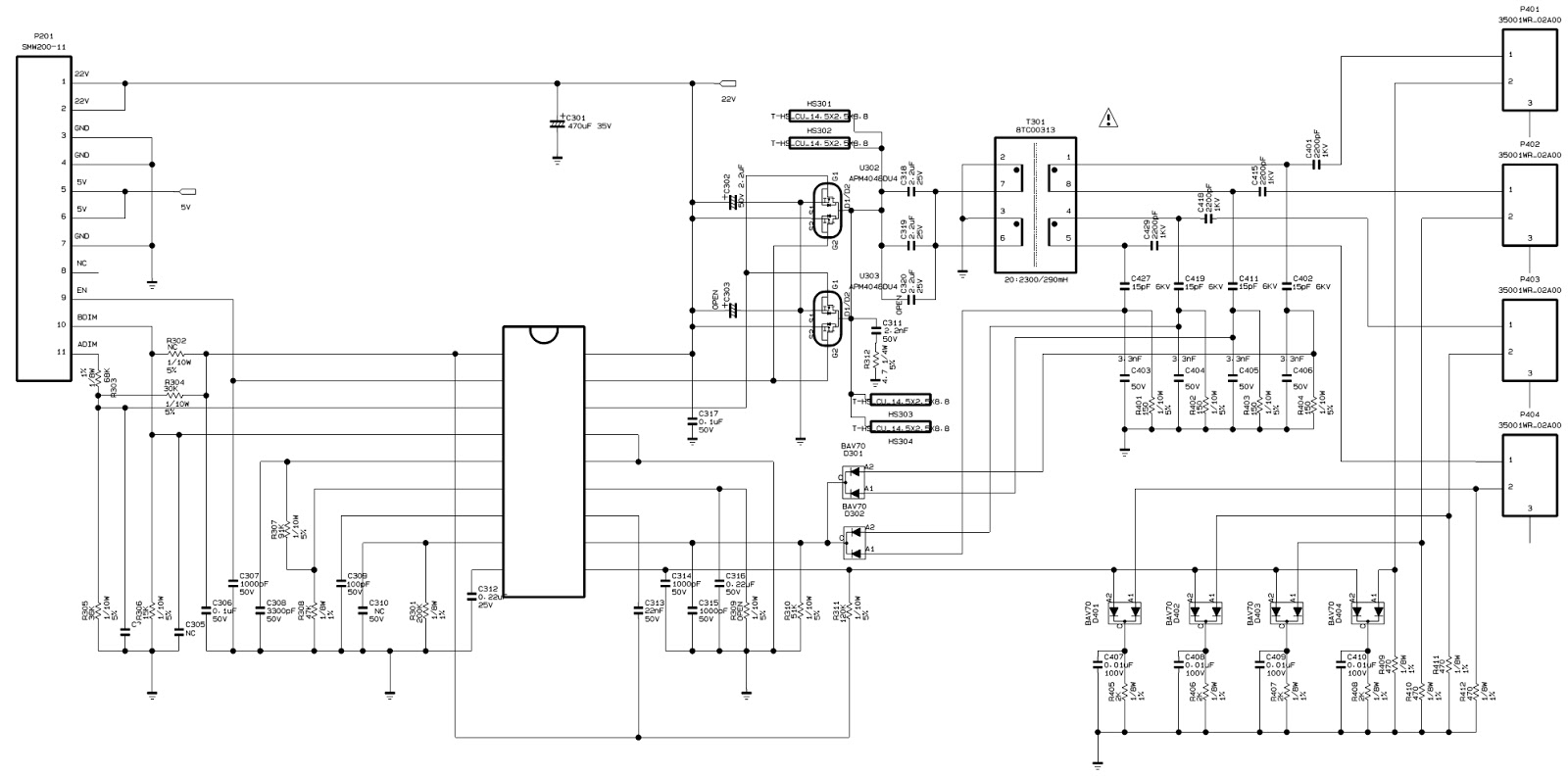

LAMP INVERTER [circuit diagram]
