PANASONIC TC-P32C20P - PEDASTAL ASSEMBLY - DETAILS


SETTING PEDESTAL COVER & STAND

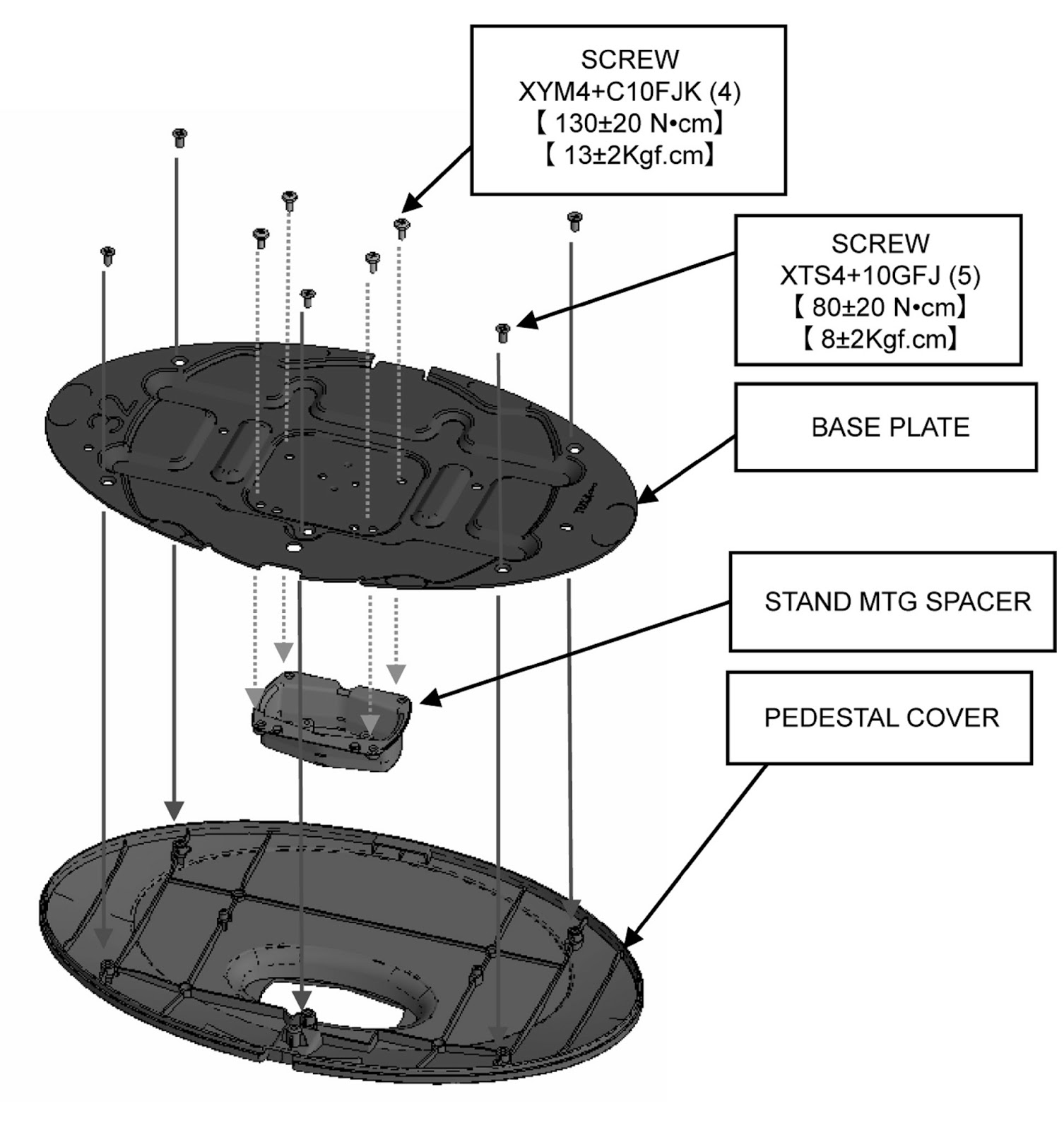

  • Setting PEDESTAL COVER and STAND MTG SPACER and BASE PLATE with SCREWS.
  • Stick the RUBBER FOOT at bottom ROTATION PLATE.
  • Make sure ROTATION PLATE surface fully cover by grease. Follow the picture.

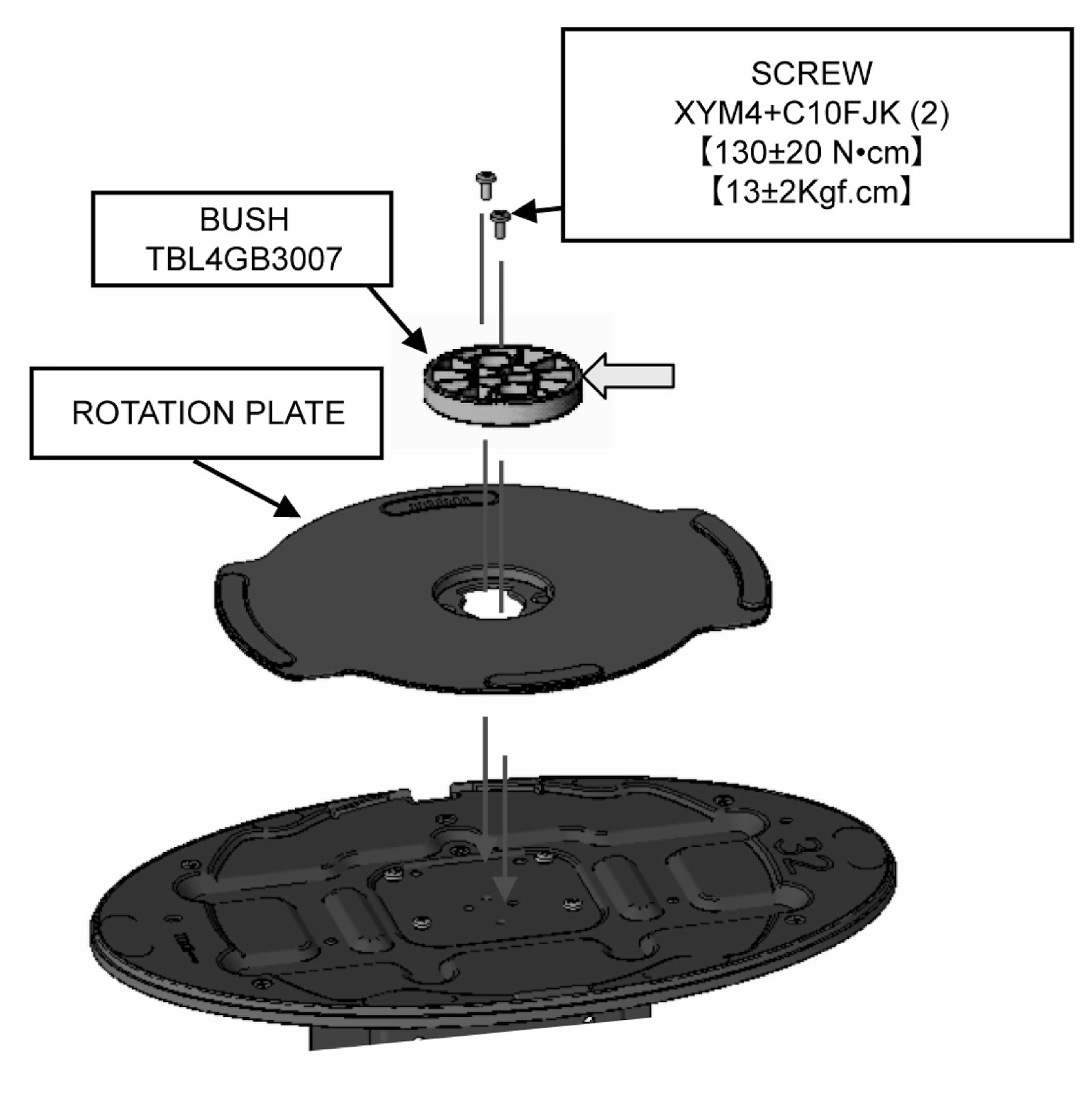

  • Setting ROTATION PLATE and BUSH with SCREWS.
Pedestal Assembly 2
  • Lay down the unit so that the rear cover faces upward.
  • Remove the 4 screws.
  • Remove the pedestal.
Click on images to Enlarge
  • Remove the 15 screws (A).
  • Remove the 2 screws (B),
  • Remove the rear cover.
Stand MTG Assembly
  • STAND MTG are put in BAG.
  • BAG is wrapped around STAND MTG.
  • SCREW is put in the BAG and use yellow tape to hold screw bag.
