LG - 42PG20R _ SOFTWARE PROGRAM DOWNLOAD PROCEDURE

PROFILE

This is for downloading the software to the flash memory of the IC803.

EQUIPMENT

1. PC.
2. ISP_tool program.
3. Download jig.

CONNECTION CONDITION

• IIC name and circuit number : Flash Memory and IC803
•  Use voltage : 3.3V (5 pin)
•  SCL : 15 pin
•  SDA : 12 pin
•  Tact time : about 2min and 30seconds.

DOWNLOAD METHOD:  PRELIMINARY STEPS

Connect the download jig to D-sub jack.

Connect the PC to USB jack

DOWNLOAD STEPS

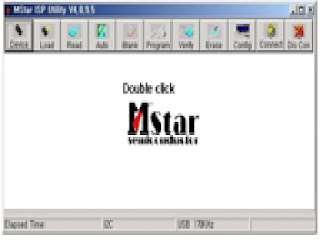

Execute ‘ISP Tool’ program in PC, then a main window will be opened.

• Click the connect button and confirm “Dialog Box”.

• Execute ‘ISP Tool’ program in PC, then a main window will be opened.

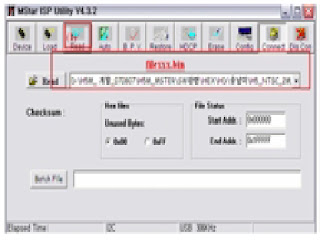

• Read and write bin file Click “(1)Read” tab, and then load download file(XXXX.bin) by clicking “Read”.

• Click “Auto(2)” tab and set as below
• Click “Run(3)”.
• After downloading, check “OK(4)” message.
