1 of 2
NECESSARY EQUIPMENT
- Windows PC (OS: Windows2000 or WindowsXP) with Serial port.
- RS-232C Dsub-9 pin cable (female to female/straight type).
- Connection JIG (90M-SR4500JIG)
- Update tool (FlashProg.exe, other files and folders in Flash Programmer folder)
- Update data (CD6002_yymmdd_x.s24).
NOTE: The yy is two digits of year. The mm is month.
The dd is date. The x is release number.
PROCEDURE
- Put the "Flash Programmer" and "software" folder into anywhere on your PC’s hard disc.

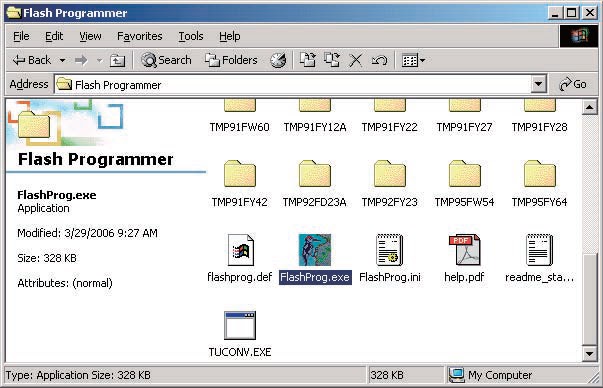

- Double click the "Flash Programmer" folder.
- Double click FlashProg.exe, and launch the Flash Programmer.
- When a Flash Programmer does not launch even if double-clicked FlashProg.exe, refer to "[B] When a Flash Programmer did not launch".
- Click "OK".
- Since Flash Programmer communicates with the unit automatically, the following dialog box appears when it fails in communication.

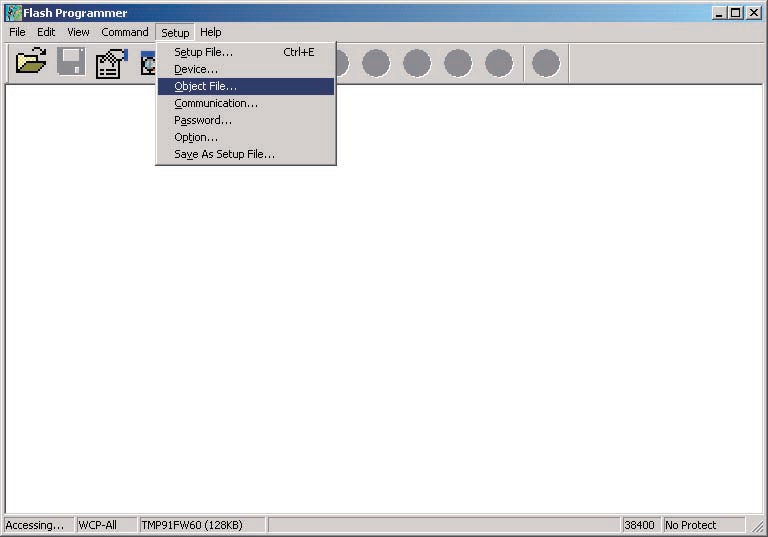

- Click the Setup in the menu bar and select the Object file.
- Click 'Browse'
- Choose the Motorola S Format(*.s16,*.s24,*.s32) in Files of type. Choose the CD6002_yymmdd_x.s24, and click Open. [The yy is two digits of year. The mm is month. The dd is date. The x is release number.].

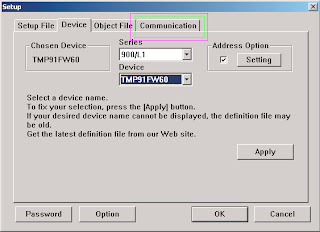

- Click 'Device' tab
- Choose the TMP91FW60 in the Device, and choose the 900/L1 in the Series. And click Communication tab.
- Choose the Serial port number in the COM Port.
- Check the Data Rate Manual, and choose the 38400 in the Data Rare.
- And Click OK.
- Disconnect the mains cord from the unit.
- Connect the RS-232C on the connection JIG and the Serial Port of windows PC with RS-232C cable.
- Connect FFC (upside contact) to the rear panel of the unit from connection JIG.
- Connect the mains cord into the unit.
- If the connection with the Flash Programmer is successfully made, a dialogue box saying "Erase All data in this devise? (Y/N)" appears automatically. If the connection fails, error message will appear. (Ex.: E000)
- Click Yes. Then click "OK".
Contd:
