LIGHT ENGINE REPLACEMENT
Remove screws from Filter Cover Holder.
LIGHT ENGINE [REAR VIEW]
Remove fixing screws
to remove the SLIDE-LOCK-MATE.

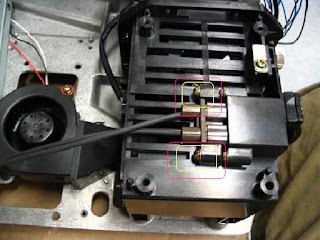

Loosen screws so that they do not touch. (4MM Allen wrench)
Loosen lock nuts and. (8MM open end wrench)
Turn CCW so the bolt clears the Engine Plate. (5MM Allen
wrench).

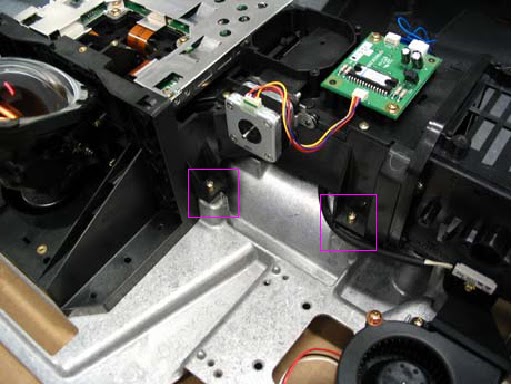

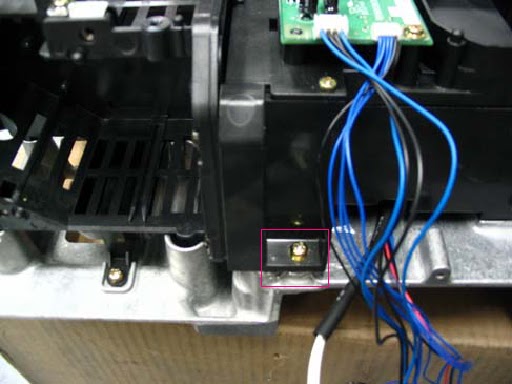

Remove one screw [Marked]
securing engine plate and base.
Remove two screws from
Fan Plate and remove Fan Plate.
Disconnect connectors.
Remove DVI cable and two connectors.
Remove wiring from three wiring clamps.
Remove 4 screws from the lamp fan.
Remove 4 screws from the lamp fan bracket
Remove 2 screws to remove ballast cable.
Disconnect all connectors from interface PWB and remove 2 screws from bracket.
Remove 4 screws from the intake cover.
Remove 4 screws to separate light engine from the engine plate.
Lift engine from engine plate leaving the lamp duct fan, lamp duct intake and ballast.
Reverse the above steps in re-installation.
