RCA 32WD26D - LCD TV - SERVICE MODE & ALIGNMENTS - WHITE BALANCE ADJUSTMENT


SERVICE MODE
  • This unit is provided with the following SERVICE MODES so you can repair, examine and adjust easily.
  • To enter to the SERVICE MODE function, press and hold both buttons simultaneously on the main unit and on the remote control for more than a the standard time in the appropriate condition.
Set Condition
Set Key
Remocon  key
Standard time
Operations
TV mode
VOL. DOWN
(Minimum)
0
2sec
Releasing of V-CHIP PASSWORD.





TV mode




VOL. DOWN
(Minimum)




1




2sec
Initialization of factory TV data.
NOTE:If you set factory initialization, the memories are reset such
as the channel setting, and the POWER ON total hours.

DVD mode
(No disc)
VOL. DOWN
(Minimum)
4
2sec
Initialization of factory DVD data




DVD mode
(No disc)



VOL. DOWN
(Minimum)



5



2sec
DVD Write mode.
Refer to the "RE-WRITE FOR DVD FIRMWARE".
NOTE: Do not use this for normal servicing.





TV mode





VOL. DOWN
(Minimum)





6





2sec
POWER ON total hours are displayed on the screen.
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".





TV mode




VOL. DOWN
(Minimum)




8




2sec
Check of the SUM DATA and MICON VERSION on the screen.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".





ALL mode




VOL. DOWN
(Minimum)




9




2sec
Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display
Adjustment).





DVD mode
(No disc)




STOP




1




2sec
DVD Check of the firmware version.
Refer to the "RE-WRITE FOR DVD FIRMWARE".
NOTE: Do not use this for normal servicing.



DVD mode
(No disc)


STOP


7


2sec
Releasing of PARENTAL LOCK.
Refer to the "PARENTAL CONTROL - RATING LEVEL".
WHEN REPLACING EEPROM IC
CONFIRMATION OF CHECK SUM, POWER ON TOTAL HOURS AND MICON VERSION
Initial total of MEMORY IC, POWER ON total hours and MICON VERSION can be checked on the screen. Total hours are displayed in 16 system of notation.
If you set a factory initialization, the total hours is reset to "0". Refer to "CONFIRMATION OF INITIAL DATA" when SUM DATA is not corresponding.
  • Turn on the POWER, and set to the TV mode.
  • Set the VOLUME to minimum.
  • Press both VOL. DOWN button on the set and Channel button (8)on the remote control for more than 2 seconds.
  • After the confirmation of each check sum, turn off the power.
  • NOTE: The each item value might be different according to each set.
CONFIRMATION OF INITIAL DATA
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to ensure correct data settings while making reference to INITIAL SETTING TABLE (Attached "INITIAL DATA").
  • Turn on the POWER, and set to the TV mode.
  • Set the VOLUME to minimum.
  • Press both VOL. DOWN button on the set and Channel button (6)on the remote control for more than 2 seconds.
  • ADDRESS and DATA should appear.
  • ADDRESS is now selected and should "blink". Using the Channel UP/DOWN button on the remote, step through the ADDRESS until Press VOL. UP/DOWN button to select DATA. When DATA is selected, it will "blink".
  • Again, step through the DATA using Channel UP/DOWN button until required DATA value has been selected.
  • Pressing VOL. UP/DOWN button will take you back to ADDRESS for further selection if necessary.
  • Repeat steps 4 to 6 until all data has been checked.
  • When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input
After the data input, set to the initializing of shipping
  • Turn on the Power.
  • Set the VOLUME to minimum,
  • Press both VOL. DOWN button on the set and Channel button (1) on the remote control for more than 2 seconds.
  • After the finishing of the initializing of shipping, the unit will turn off automatically.
  • The unit will now have the correct DATA for the new MEMORY IC.
ELECTRICAL ADJUSTMENTS
Prepare the following measurement tools for electrical adjustments.

  • Pattern Generator.
ON SCREEN DISPLAY ADJUSTMENT
  • Set the VOLUME to minimum.
  • Press the VOL. DOWN button on the set and the channel button (9) on the remote control for more than 2 seconds to display adjustment mode on the screen.

  • Use the Channel UP/DOWN button or Channel button (0-9)on the remote control to select the options.
  • Press the MENU button on the remote control to end the adjustments.
  • To display the adjustment screen for ANT, VIDEO,COLORSTREAM HD, HDMI and PC mode, press the INPUT SELECT button on the remote control to set to the ANT, VIDEO, COLORSTREAM HD, HDMI and PC mode.
  • Press the VOL.DOWN button on the set and the channel (9)on the remote control for more than 2 seconds.

FLICKER
NOTE: The following adjustment is necessary for changing the DIGITAL PCB and Panel module.
  • Activate the adjustment mode display and press the Channel UP/DOWN button to select "40 Flicker test". Check if the screen is flashing.
  • Turn Variable Resister, and adjust it not appear FLICKER (FLASHING).
WHITE BALANCE ADJUSTMENT
  • Place the set in Aging Test for more than 15 minutes.
  • Receive the gray scale pattern from the Pattern Generator.
  • Press the INPUT SELECT button on the remote control to set to the VIDEO mode.
  • Using the remote control, set the brightness and contrast to normal position.
  • Activate the adjustment mode display and press the channel button(03)on the remote control to select "R DRIVE (N)".
  • Press the CH. UP/DOWN button on the remote control to select the "R CUT OFF(N)", "B DRIVE(N)", "B CUT OFF(N)", "R DRIVE(C)", "R CUT OFF(C)", "B DRIVE(C)", "B CUT OFF(C)", "R DRIVE(W)", "R CUT OFF(W)", "B DRIVE(W)" or "B CUT OFF(W)".
  • Adjust the VOL. UP/DOWN button on the remote control to whiten the R CUT OFF(N), B DRIVE(N), B CUT OFF(N), R DRIVE(C), R CUT OFF(C) , B DRIVE(C), BCUT OFF(C), R DRIVE(W), R CUT OFF(W), BDRIVE(W) and B CUT OFF(W) at each step tone sections equally.
  • Perform the above adjustments until the white color is achieved.
CONTRAST MAX
  • Receive the monoscope pattern. (RF Input)
  • Press the INPUT SELECT button on the remote control to set to the ANT mode.
  • Set the screen mode to FULL.
  • Using the remote control, set the brightness and contrast to normal position.
  • Activate the adjustment mode display 1and press the channel button (34) on the remote control to select "CONT MAX".
  • Press the VOL. UP/DOWN button on the remote control until the white color is looked like a white.
  • Receive the monoscope pattern. (VIDEO Input)
  • Press the INPUT SELECT button on the remote control to set to the VIDEO mode. Then perform the above adjustments.
  • Playback the DVD (480i) disc. (COLORSTREAM HD Input)
  • Press the INPUT SELECT button on the remote control to set to the COLORSTREAM HD mode. Then perform the above adjustments.
  • Playback the DVD (480i) disc. (HDMI Input)
  • Press the INPUT SELECT button on the remote control to set to the HDMI mode. Then perform the above adjustments.
BRIGHT CENT
  • Receive the monoscope pattern. (RF Input)
  • Press the INPUT SELECT button on the remote control to set to the ANT mode.
  • Set the screen mode to FULL.
  • Using the remote control, set the brightness and contrast to normal position.
  • Activate the adjustment mode display -1and press the channel button (26) on the remote control to select "BRIGHT CENT".
  • Press the VOL. UP/DOWN button on the remote control until the contrast step No. Becomes "102".
  • Press the INPUT SELECT button on the remote control to set to the VIDEO mode. Then perform the above adjustments.
  • Playback the DVD(480i) disc. (COLORSTREAM HD Input) Press the INPUT SELECT button on the remote control to set to the COLORSTREAM HD mode.Then perform the above adjustments.
  • Playback the DVD(480i) disc. (HDMI Input)
  • Press the INPUT SELECT button on the remote control to set to the HDMI mode.
  • Set the screen mode to FULL.
  • Using the remote control, set the brightness and contrast to normal position.
  • Activate the adjustment mode display-1and press the channel button (26)on the remote control to select "BRIGHT CENT".
  • Press the VOL. UP/DOWN button on the remote control until the contrast step No. Becomes "114"

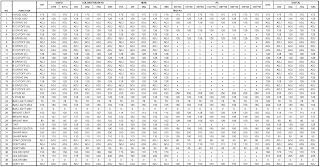

Check if the fixed values of each of the adjustment item is set correctly referring below.  (ANT/VIDEO/COLORSTREAM HD/HDMI/PC/DVD/DIGITAL {Click on picture to Enlarge}
