PHILIPS - A8.0E - CHASSIS CTV - SCHEMATIC [CIRCUIT] DIAGRAMS

POWER [SMPS]

{Clcik on images to Enlarge}

HORIZONTAL DEFLECTION & LINE OUTPUT

VERTICAL DEFLECTION

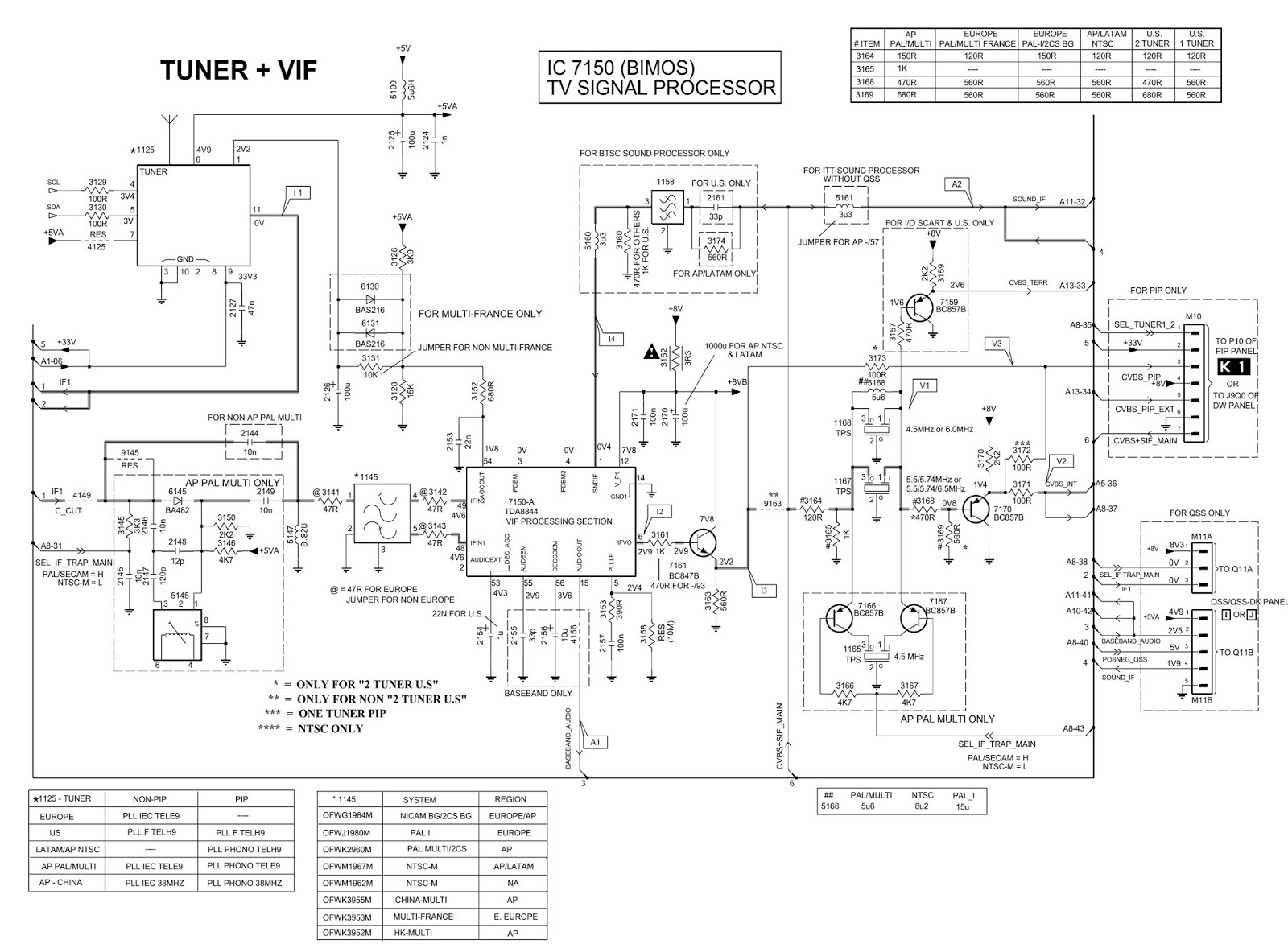

TUNER & VIDEO IF

VIDEO PROCESSING

SYNCHRONIZATION

RGB PROCESSING

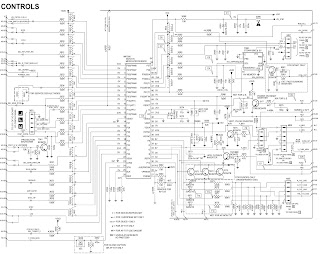

CONTROLS

AUDIO PROCESSING

AUDIO OUTPUT

CRT PANEL
