- Install the Flash Downloader
- Connector Set(D-SUB) and D-SUB cable to execute Program Update.
Flash Downloader program update
- Turn on the TV Set
- Click "Connect" icon on the MSTAR tool.
- Click "Read", and Choose a new S/W.
- Click "Auto", and "Run"
WHITE BALANCE CALIBRATION
- If picture color is wrong, do calibration first.
- Equipment : CA210, Patten : chess pattern
- Execute calibration in Factory Mode
- Source AV : PAL composite, Component : 1280*720/60Hz PC : 1024*768/60Hz
White Balance - Adjustment
- If picture color is wrong, check White Balance condition.
- Equipment : CA210, Patten : Toshiba
- Adjust W/B in Factory Mode
- Sub brightness and R/G/B Offset controls low light region
- Sub contrast and R/G/B Gain controls high light region
- Source AV : PAL composite, Component : 1280*720/60Hz HDMI[DVI] : 1280*720/60Hz
CONDITIONS FOR MEASUREMENT

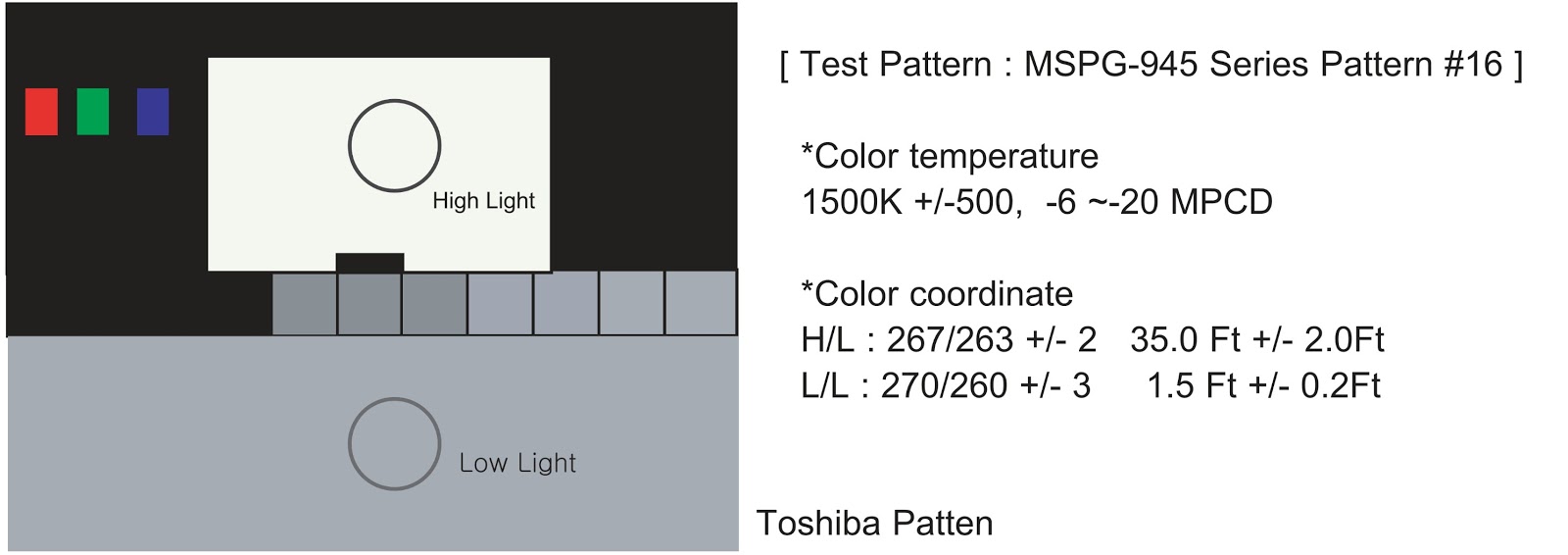

- On the basis of toshiba ABL pattern : High Light level (57 IRE)
- INPUT SIGNAL GENERATOR : MSPG-925LTH
- * Mode NO 2 : 744X484@60 Hz
- NO 6 : 1280X720@60 Hz
- NO 21 : 1024X768@60 Hz
- * Pattern NO 36 : 16 Color Pattern
- NO 16 : Toshiba ABL Pattern
- Optical measuring device : CA210 (FL)
- Use the MSPG-925 LTH generator for model LE26M51B/LE32M51B/LE40M51B/LE46M51B.
ADJUSTMENT METHOD
- Adjust the white balance of AV, Component and DVI Modes. (AV Component)
- Set the input to the mode in which the adjustment will be made (RF DTV PC DVI).
- Input signal - VIDEO Mode : Model #2 (744*484 Mode), Pattern #16
- DTV,DVI Mode : Model #6 (1280*720 Mode), Pattern #16
- HDMI Mode: Model #6(1280*720 Mode), Pattern #16
- Enter factory color control, confirm the data.
- Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust sub - Brightness to set the 'Y' value.
- Adjust red offset ('x') and blue offset ('y') to the color coordinates.
- Do not adjust green offset data.
- Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
- Do not adjust the green gain and sub-contrast (Y) data.
- Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
- Do not adjust the green gain and sub-contrast (Y) data.
