SAMSUNG 100 Hz TV - WS32Z308PAXXEEC - POWER BOARD - DEFLECTION ASS'Y BOARD - DESCRIPTIONS



DEFLECTION BOARD ASSEMBLY
Names & Roles of Key Parts
  • CN401 : This is a 28 pin port connected to the System Board, and supplies 33V, 15V, 9V, 5V and 3.3V power to the System Board.
  • CN402 : This is a 14 pin port connected to the Power Board, is supplied with 145V and 15V power by the Power Board and receives the power ON/OFF signal.
  • CN403 : This is a 10 pin port connected to the CRT Ass'y, and supplies power for the CRT and R/G/B signal amplifying AMP.
  • CN301 : This is a 4 pin port connected to the DY, and supplies voltage for CRT R/G/B.
  • GT101 : This is a ground port to prevent high voltage due to lightning, and is connected to the Power Board.
VOLTAGE CHARTS

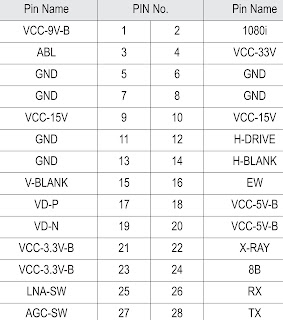

CN401- Connected to the System Board
CN402 - Connected to the Power board
CN403 - Connected to the CRT Ass'y
POWER BOARD

Names & Roles of Key Parts
  • CN804 : This is a 14 pin port connected to the Deflection Board, and supplies 142V and 15V voltage and the power on and off signals to the Deflection Board.
  • CN803 : This is a 24 pin port connected to the System Board, and supplies ST-BY 5V, 15V and 7.5V voltage and the S-Mute signal, to prevent a Sound Pop-Noise which is generated when turning the master power OFF, to the System Board.  It receives the Relay, Power and 1080i signals from the System Board.
  • GT807 : This is a port for countermeasures against compulsory discharges and is connected to the CRT Board.
  • GT804 : This is a ground port to prevent high voltage due to lightning and is connected to the Deflection Board.
  • CN802 : This is a 3 pin port connected to the AC power cable. It is connected to the power cable socket.
  • GT805, GT806 : This is a port connected to the D-Coil surrounding the CRT.
CONNECTOR VOLTAGES
CN - 803.  Supplies Power to the System Board
CN804 - Supplies Power to the Deflection Board
