SONY KV-28LS60 - SONY KV-32LS60 - How to Enter Service Mode - SELF DIAGNOSIS - How to Disassemble


SELF DIAGNOSTIC SOFTWARE
The identification of errors within the AE-6B chassis is triggered in one of two ways :-
1: Busy or 2: Device failure to respond to IIC. In the event of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with a continuous flashing LED) and then communicate with each device in turn to establish if a device is faulty. If a device is found to be faulty the relevant device number will be displayed through the LED (Series of flashes which must be counted) See table 1, non fatal errors are reported using this method.
Each time the software detects an error it is stored within the NVM.
TABLE-1
ERROR MESSAGE
LED CODE

NO ERROR
00
Reserved
01
Over current protection [OCP]
02
Over voltage protection [OVP]
03
No vertical sync
04
IKR error
05
IIC bus block and/or data lines low at power on
06
NVM no IIC bus acknowledge at power on
07
Horizontal protection
08
Tuner no acknowledge at power on
09
Sound processor error
10
Reserved
11
Scan rate error
12
DAC error
13
Back end error
14
Dynamic convergence error
15
PIP error
16
HOW TO ENTER INTO TABLE-2
  • Turn on the main power switch of the TV set.
  • Program Remote Commander for Operation in Service Mode.
  • Press ‘VIDEO’ ‘VIDEO’ > ‘MENU’ on the Remote Commander.
  • Using the Remote Commander, Scroll to the ‘Error Menu’item using the down arrow key, then press the right arrow key.
  • The following table will be displayed indicating the error count.
To clear the error count data press ‘80’ on the Remote commander.
DISASSEMBLY
Remove the rear cover fixing screws indicated. Take care when removing the rear cover not to damage the speaker cables [Disconnect the speaker connector] as speakers are fitted inside the rear cover.
Before completely removing the rear cover disconnect the speaker connector which is located on the inside.
To remove lift the main bracket rear slightly and slide the chassis away from the beznet. Ensure that the interconnecting leads are released from their purse locks to prevent damage being caused.
When refitting the chassis ensure that the main bracket is located in the beznet guide slots before sliding the chassis forwards. Refit the interconnecting leads in their respective purse locks.
Position the chassis as indicated to access the solder side.
To remove the G Board release the clips circled and ease the board gently away from the support bracket. Removal of the D Board follows the same procedure.
   To remove the M Board gently release the two clips with a screwdriver and remove the board from its socket vertically.

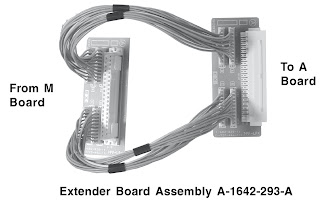

   If the M Board needs to be removed for testing when the chassis is placed in its service position, it would be necessary to use an extender board and extension cable as indicated above.  The Extender board and extension cable are available.
Ensure that wires do not touch heat sinks and high temperature hotspots. All wires must be kept at a minimum distance of 20 mm away from the EHT lead.
TO ENTER SERVICE MODE
  • To enter into the ‘Service Mode’ press ‘VIDEO’ button twice and ‘MENU’ on the Service Commander.
Service adjustments to this model can be performed using the supplied remote Commander RM-932.
  1. Press the VCR/TV/DVD button until the TV LED lights.
  2. Press and hold the yellow button for approx. 5 seconds until the TV LED flashes quickly.
  3. Press 99999. All three LED’s should light.  The remote commander is now set to Service Mode.
  4. To return the remote commander to normal operation mode repeat steps 1. and 2. then press 00000. All three LED’s should light.
  5. The remote commander is now set to normal mode.
SETTING THE TV INTO SERVICE MODE
  • Program the remote commander for operation in Service Mode as described above.
  • Turn on the TV main power switch.
  • Press the video standby button on the remote commander twice.  ‘TT ’ will appear in the upper right corner of the screen.  Other status information will also be displayed.
  • Press ‘MENU’ on the remote commander to obtain the above menu on the screen.
  • Move to the corresponding adjustment item using the up or down arrow buttons on the Remote Commander.
  • Press the right arrow button to enter into the required menu item.
  • Press the ‘Menu’ button on the Remote Commander to quit the Service Mode when all adjustments have been completed.
Note :   After carrying out the service adjustments, to prevent the customer accessing the ‘Service Menu’ switch the TV set OFF and then ON.
