BENQ LCD E2400 SOFTWARE UPGRADE Procedure

SOFTWARE/FIRMWARE UPGRADE PROCESS
When do the part, need the tools as below.

• An i486 or above personal computer of compactable.
• Microsoft OS Windows 95 | 98 | 2000 | XP.
• 'PORTR95NT.exe' program.
• Software ISP SN Alignment kits.

The kit contents:

1. ISP BOARD*1
2. Printer cable*1
3. VGA Cable*1

• Install the "PORT95NT.EXE", & restart the computer.

You must install the   'PORT95NT.EXE at first.  The procedure follows:

Please wait while setup determines the files to be installed; will be displayed.

"Click [Finish] to complete the installation will be displayed.  "Click on this button".

After installation, restart the PC to take the setup to effect.

CONNECT ISP BOARD AS FOLLOWS

THE PROCESS OF ISP WRITE AS FOLLOWS.

Double click "M", running the program as follows.

Click 'Connect' icon, running the program as follows.

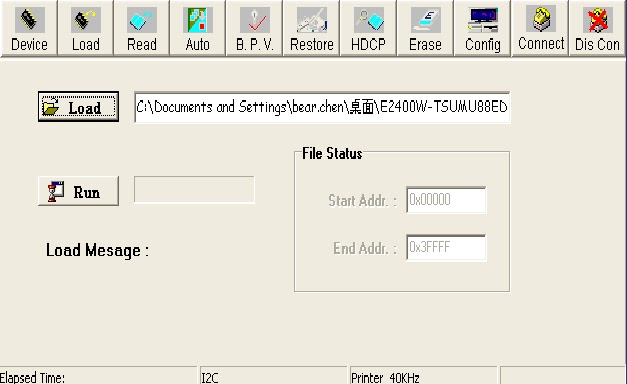

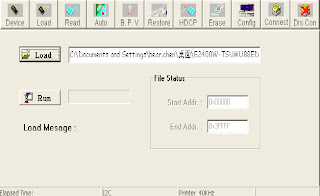

Click 'Load' icon, the program "E2400W-TSUMU88ED1-M240HW01-V0x-20080801-_V027_B15B.BIN"

Click "Auto" icon, it will auto run.  If burn is success, it will show as the follow picture.
