EMERSON LC320EM8 A - LCD TV - SERVICE MODE - POWER SUPPLY & BACK-LIGHT INVERTER CBA - CIRCUIT DIAGRAM [SCHEMATIC DIAGRAM] - Universal Remote Control Setup Codes



TO ENTER SERVICE MODE, you have to convert the supplied remote control to a service remote control.
  • Cut “A” portion of the attached remote control unit as shown in Fig to access the hidden service button.
SERVICE MODE

  • Use the service remote control unit.
  • Turn the power on.
  • Press the service button on the service remote control unit. The following screen appears.
This display might differs depending on the models.
PURITY CHECK MODE

This mode cycles through full-screen displays of red, green, blue, and white to check for non-active pixels.
  • Enter the Service mode.

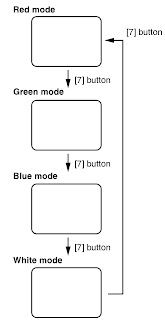

  • Each time pressing [7] button on the service remote control unit, the display changes as follows.
When entering this mode, the default setting is White mode.

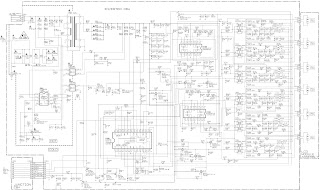

MAIN POWER SUPPLY [SCHEMATIC]

CLICK ON CIRCUIT DIAGRAMS TO MAGNIFY

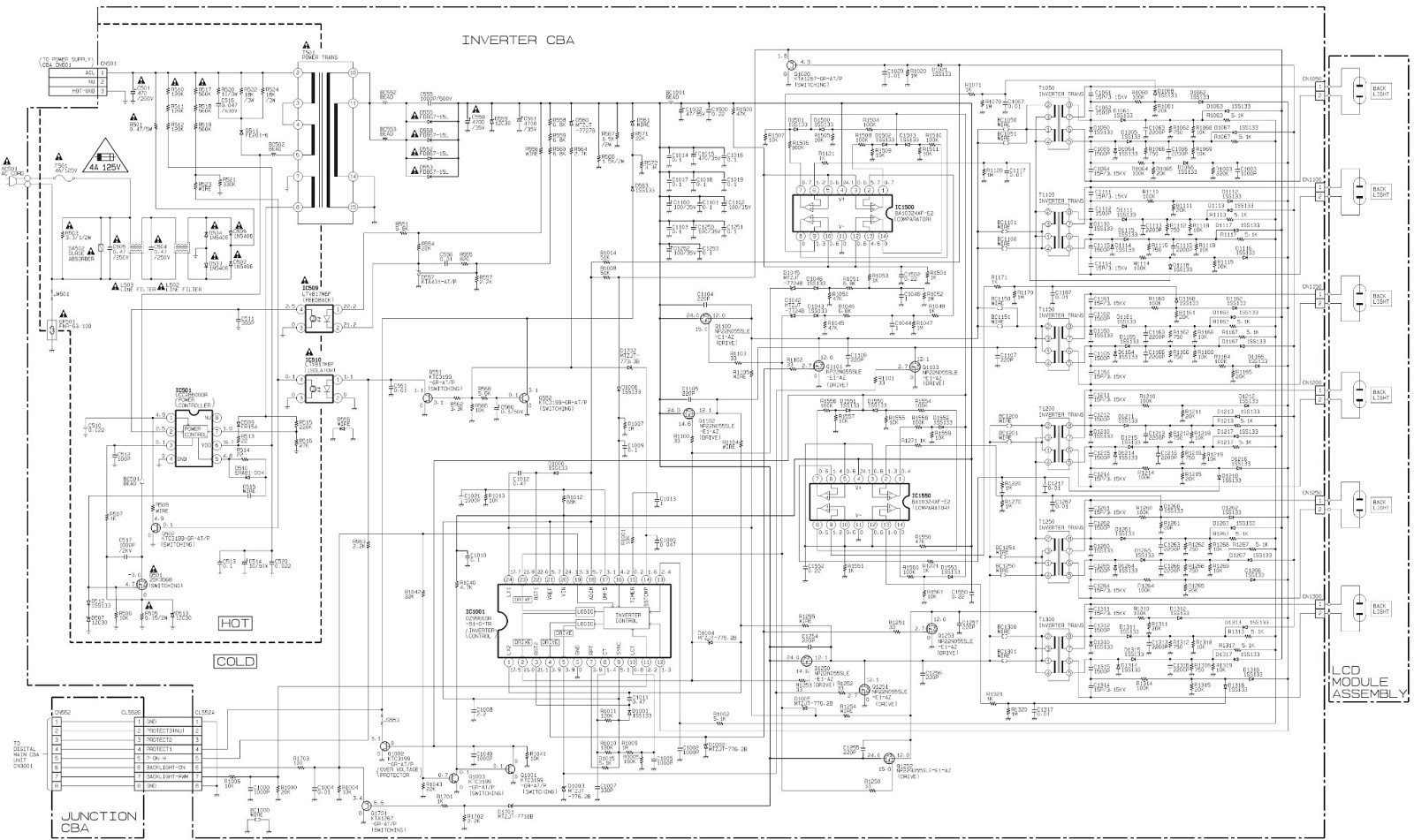

BACK-LIGHT INVERTER CBA
SETUP CODES

0004 0009 0044 0135 0049 0051 0189 0053 0147 0039 0130 0227 0233 0250 0252 0254 0257 0265 0266 0310 0325 0456 0040 0041 0042 0021 0023 0024 0179 0045 0025 0027 0030 0032 0034 0035 0037 => With GE remote control.

1003, 1004, 1009, 1011, 1018, 1021, 1023, 1025, 1026,1028, 1030, 1031, 1033, 1035, 1038, 1039, 1041, 1045,1047, 1054, 1078, 1083, 1109, 1123, 1127, 1128, 1133, 1163, 1165, 1167, 1206, 1207, 1208, 1230 => With RCA RCR311W remote control

10017, 10154, 10451, 10236, 10463, 10180, 10178, 10171, 11394, 11963 => With RCA RCR312W remote control

017,022,025,027,036,037,038,039 040,043,044,045,046,047,048,049,050 051,052,053,054,055,056,057,058,059 060,062,136,137,176,184,189,190,192,210 => With 6 IN one universal remote control.
