LG HB905PA – SB95PA-F/S/C/W - TROUBLESHOOTING CHART [Click on Charts to Magnify]


SMPS / POWER SUPPLY BOARD
NO SOUND
POWER KEYBOARD

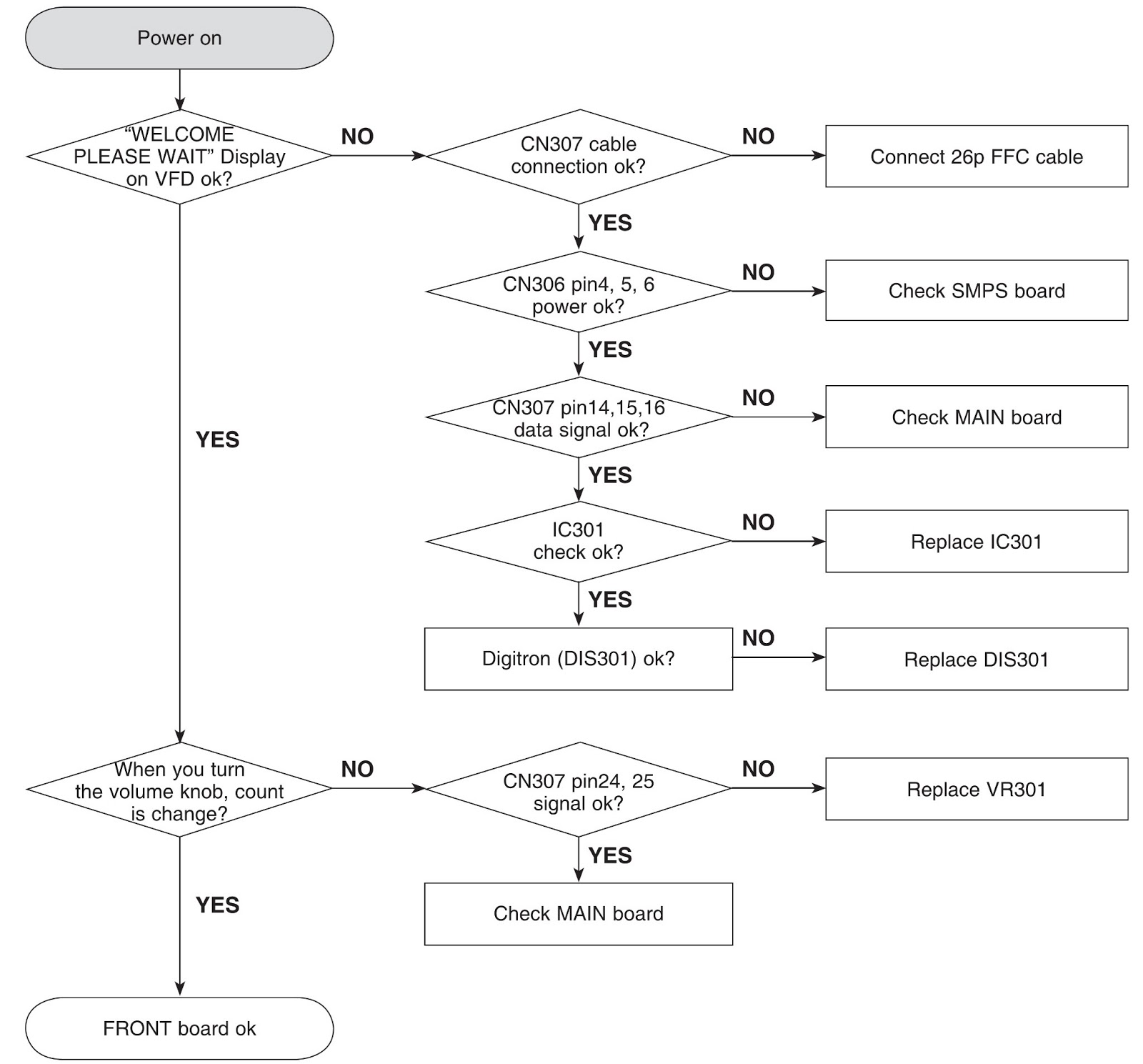

FRONT BOARD
FRONT BOARD [HB965 / HT065]
NO AUDIO CHECK

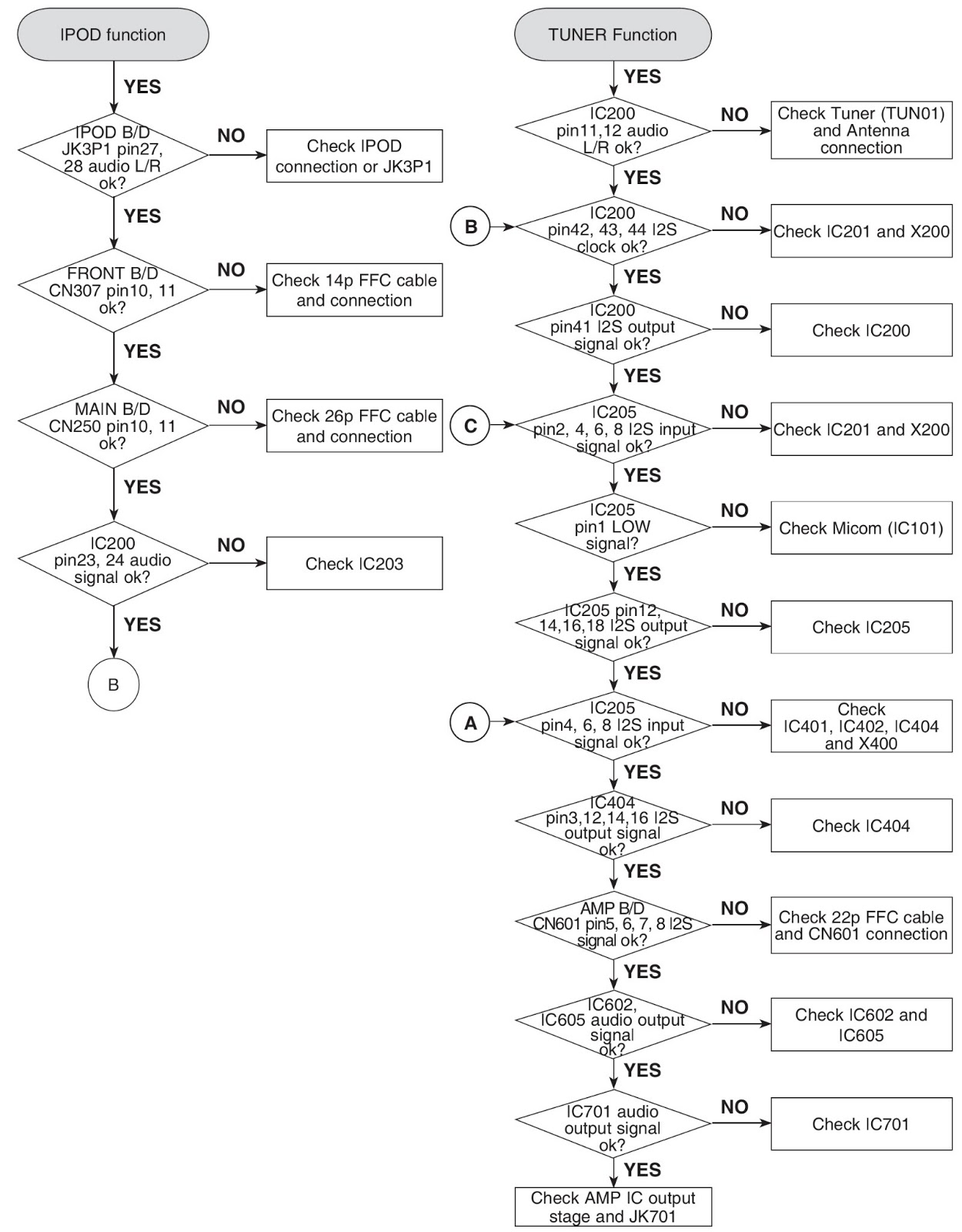

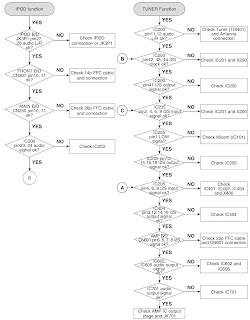

iPOD AND TUNER FUNCTION
NO VIDEO CHECK
CLICK ON TABLES TO MAGNIFY
HDMI NO AUDIO/VIDEO [HDMI-IN]
HDMI OUT
HDMI NO AUDIO/VIDEO CHECK [WITHOUT HDMI IN]
