HITACHI - 51F59, 57F59, 65F59, 51F59A/J, 57F59A/J, 65F59A/J _ Software Update



     Preliminary Procedure: Note: MMC = Multi-Media Card Gain access the rear of the TV.  Insert the MMC into the Multi Media Card slot as shown in figure. Push the MMC in until you hear a click, indicating the MMC is properly inserted.

Top View - MMC

Example of Software Version.  Note:  Software Version number will vary in accordance to the Version Released.  Your Version may be different than the one shown.

Bottom View - MMC

Rear view _ TV Jack Panel


Upgrade Card


UPGRADE PROCEDURE


  • Insert MMC Card fully into slot until it clicks.
  • Turn the TV ON.
  • Press the MENU button on the Remote.

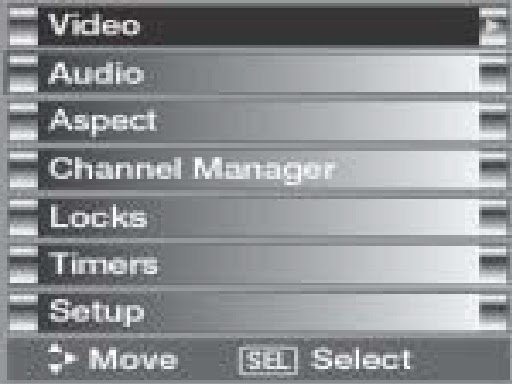

  • Menu will appear.





  • Thumbstick Down and Highlight SETUP and press SELECT.




  • The Setup Menu will appear.




  • Continue to Cursor down and highlight Upgrades and press Select.




If the MMC card isn't already inserted, insert MMC card fully until it Clicks.


  • Cursor Down and Highlight Upgrade Now and press Select.





  • The Upgrade begins. Upgrade will take approximately 2 to 3 minutes.




  • After Software upgrade/s have been successfully completed, please turn the power off.  Remove the MMC Software Upgrade Card from the rear of the TV.  Then unplug the AC power cord for 60 seconds to reset the TV.  Plug in the AC power cord.  Repeat steps 2 through 8 to check the software version for verification.


Your software version should now show correct version number as shown on the MM Card front Label.



Note:  to remove the MMC, gain access to the rear of the set. Push the card in until a click is heard, this will release the MMC and then remove the card.


SOFTWARE UPGRADE:  QUICK STEPS

     Insert the MM Card software upgrade card into the MM Card slot in the read of the set. Be sure to push in until a click is heard. Note. Label on the card is to the left.
  1.  Turn the Set On.
  2.  Press Menu and Select Setup.
  3.  Thumbstick down to the 2nd page of the Setup Menu and Select Upgrades.
  4.  Thumbstick down and Select Upgrade Now.

 After completion, Power off the set, Remove the MM Card, wait 60 seconds.
 To verify the upgrade took place, repeat steps 2 through 4 and check the version.

To download the software, click this link.  User name and Password is required.
