HISENSE PDP42W39PEU - PDH4233NEU-2 - SOFTWARE UPGRADE PROCEDURE




FIRMWARE UDATE
  • The software is upgraded by a burning tool- ISP_TOOL4.0.9, which can burn the program file *.bin to the main board of the unit
Get ready for upgrading
  • Install the ISP_TOOL4.0.9-------only for the first time update.
PORT SETTING
  • Choose “system” option from the “control panel
  • Click the “system” icon as the following.
  • Choose the “hardware” option from the dialog window.

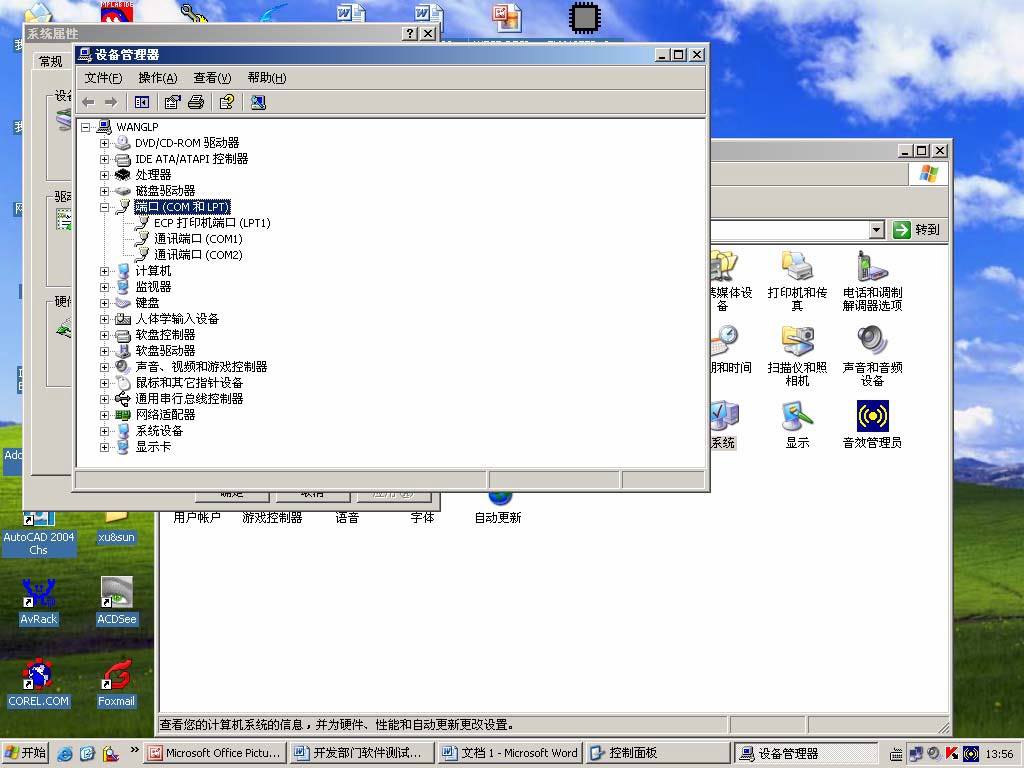

  • Click” device management” icon as the following.
  • Choose the port (COM and LPT1)
  • Choose the ECP print port {LPT1}
  • Click the port of print {LPT1}as the following.
  • Choose “port setting” option as the following.

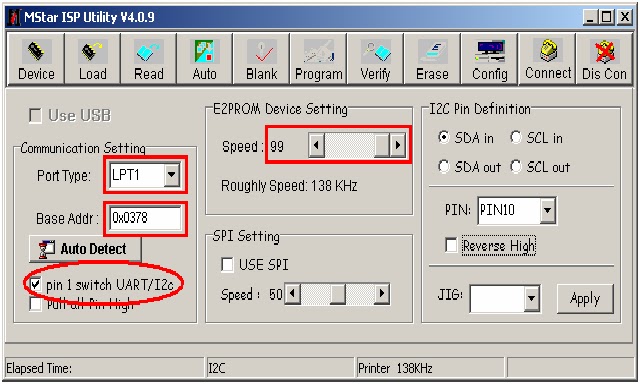

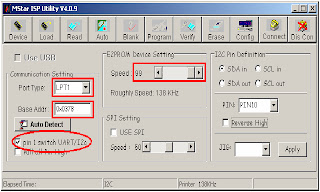

  • Double click the ISP_TOOL4.0.9 icon, and then a dialog window will show as below.
  • Choose“SDA in”and setting “PIN” is “PIN10”
Notes:
Do not draw [check] on the front of “Reverse High” As following.

  • Choose “SCL in”and setting “PIN” is “PIN11”
Notes:
Do not draw [check] on the front of “Reverse High” As following.

  • Choose “SDA out”and setting “PIN” is “PIN4”
Notes:
Draw [check] on the front of “Reverse High” As following.

  • Choose “SCL out”and setting “PIN” is “PIN2”
Notes:
Draw [check] on the front of “Reverse High” As following.

  • After having finished all above, clicking the “Apply ”button to complete the configuration.
                                                                     Hardware connecting - By Next post >>
