RCA L32WD26D - PARENTAL CONTROL RESET - DISC REMOVAL METHOD AT NO POWER SUPPLY - SERVICE MODE - ADJUSTMENT PROCEDURE




PARENTAL CONTROL - RATING LEVEL

If the stored 4-digit password in the Rating Level menu needs to be cancelled, please follow the steps below.
  • Turn Unit ON.
  • Set the DVD to the Stop Mode.
  • Check that “No disc” is displayed on the screen.
  • Press and hold the “STOP” button on the front panel.
  • Simultaneously press and hold the “7” key on the remote control unit.
  • Hold both keys for more than 2 seconds.
  • The On Screen Display message “PASSWORD CLEAR” will appear.
  • The 4-digit password has now been cleared.

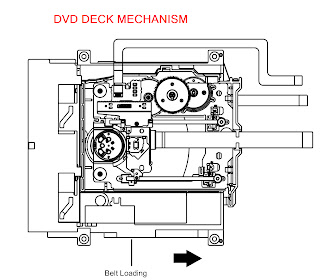

DISC REMOVAL WHEN THERE IS NO POWER SUPPLY
  1. Remove the Back Cabinet and Angle Deck.
  2. Slide the Belt Loading toward the arrow direction by hand to release the lock.
  3. Take out the Disc from the DVD Deck. Be careful not to scratch on the Disc [refer fig given below]
TO ENTER SERVICE MODE
  • This unit is provided with the following SERVICE MODES so you can repair, examine and adjust easily.
  • To enter to the SERVICE MODE function, press and hold both buttons simultaneously on the main unit and on the remote control for more than a the standard time in the appropriate condition.
Set Condition
Set Key
Remocon key
Standard time
Operations


TV mode

VOL. DOWN
(Minimum)

0

2sec
Releasing of V-CHIP PASSWORD





TV mode




VOL. DOWN
(Minimum)




1




2sec
Initialization of factory TV data.
NOTE:If you set factory initialization, the memories are reset such as the channel setting, and the POWER ON total hours.

DVD mode
(No disc)
VOL. DOWN
(Minimum)
4
2sec
Initialization of factory DVD data.





DVD mode
(No disc)




VOL. DOWN
(Minimum)




5




2sec
DVD Write mode.
Refer to the "RE-WRITE FOR DVD FIRMWARE".
NOTE: Do not use this for normal servicing.





TV mode




VOL. DOWN
(Minimum)




6




2sec
POWER ON total hours are displayed on the screen. Can be checked of the INITIAL DATA of MEMORY IC.





TV mode




VOL. DOWN
(Minimum)




8




2sec
Check of the SUM DATA and MICON VERSION on the screen.Refer to the "WHEN REPLACING EEPROM (MEMORY) IC"





ALL mode




VOL. DOWN
(Minimum)




9




2sec
Display of the Adjustment MENU on the screen. Refer to the ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).





DVD mode
(No disc)




STOP




1




2sec
DVD Check of the firmware version.
Refer to the "RE-WRITE FOR DVD FIRMWARE".
NOTE: Do not use this for normal servicing.



DVD mode
(No disc)



STOP



7



2sec
Releasing of PARENTAL LOCK.
Refer to the "PARENTAL CONTROL - RATING LEVEL".
