BenQ LCD G922HD - DISASSEMBLE PROCEDURE



PRODUCT DISASSEMBLY
Remove the stand-base ASS’Y

  • Place the monitor face down on a smooth surface. Be careful to avoid scratch and injury during the process of uninstall. And then remove the two screws as below to remove the stand-base ASS’Y.
Remove the Bezel
  • Remove the bezel as shown below.

  • Remove the rear cover.
Remove the Panel
  • Disconnect the Lamp Connections and LVDS Cable connection.

Remove the Main Board and Power Board

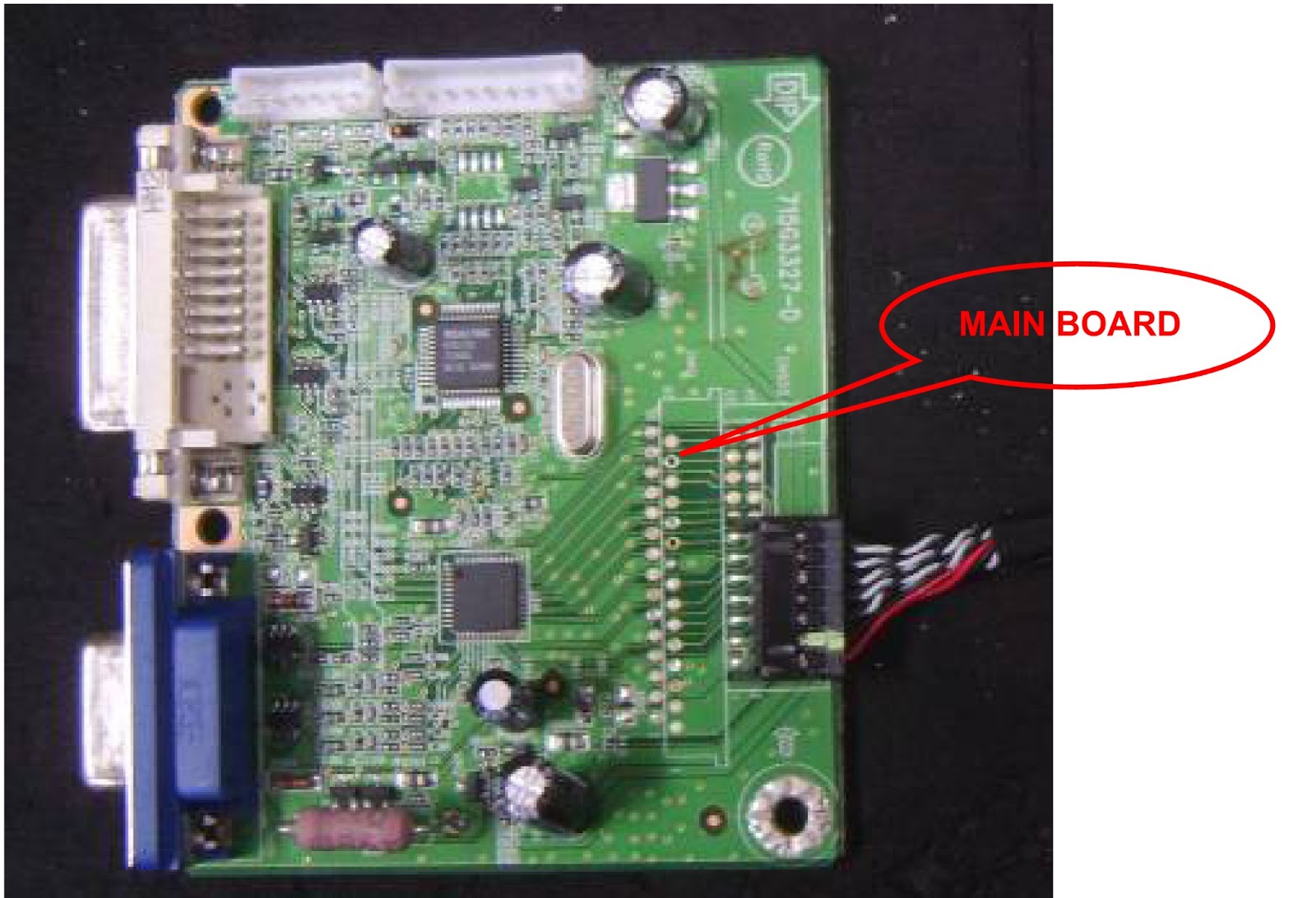

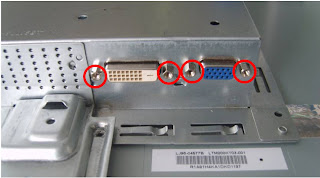

  • Remove the screws in red and disconnect the all connections in blue, at last you can get the Main Board and Power Board as shown below.
