CABINET - TOP REMOVAL
- Remove five screws-A.
- Grasp the rear both ends of Cabinet-front with both hands, and slightly pull upward.
- Release hook, by pressing down "C" portion lightly with finger.
- Grasp the rear both ends of Cabinet-front with both hands, pull up and remove upwards.
Note: Be careful not
to damage Hook. Cabinet-top is being fixed with cabinet-front by hook.

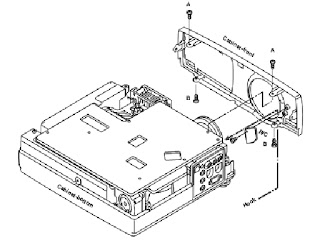

CABINET - FRONT REMOVAL
- Remove four screws A and B.
- Turn the focus-ring of Projection lens fully clockwise.
- Set zoom-lever of Projection lens to under lens.
- Slightly pull the upper part of Cabinet-front forward with both hands. (hook is released and cabinet front is removed.)
- Remove a screw and, next, remove Unit R/C.
Note: Be careful not
to damage Hook. There is hook which is fix-ing Cabinet-front and Cabinet-bottom
under Projection lens.
Screws-A and screws-B are used different kind screws. Check the kind of screw, and proper screw
should be used.

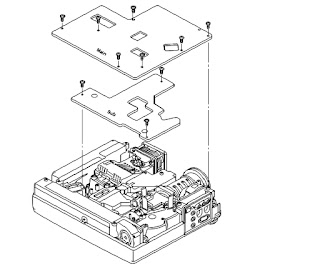

ASS'Y - MAIN AND ASS'Y - SUB REMOVAL
- Remove seven screws and remove Ass'y Main.
- Remove three screws and remove Ass'y-Sub.
ASS'Y - POWER AND FAN (FN903) REMOVAL
- Remove seven screws and remove Ass'y Power.
- Remove two screws and remove Fan (FN903).
ASS'Y - AV AND FAN (FN907) REMOVAL
- Remove five screws and remove Ass'y AV.
- Remove three screws and remove Fan (FN907).
ASS'Y - LAMP - BSALLAST REMOVAL
- Remove six screws and remove Ass'y Lamp-ballast.

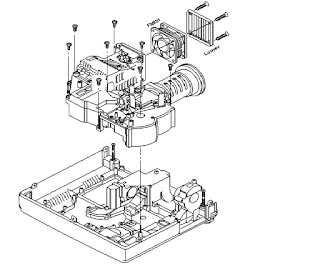

OPTICAL UNIT, FAN (FN901) AND LOUVER REMOVAL
- Remove eight screws and remove Optical unit.
- Remove three screws and remove Fan(FN901) and louver.
AIR DUCTS AND FANS REMOVAL
- Remove four screws-A and remove Duct-FR and FN905.
- Remove two screws-B and remove Duct-PBS and FN906.
- Remove three screws-C and remove Duct-TOP and FN902.
- Remove two screws-D and remove Duct-TOP-Green and FN904.
- Remove screw-E and remove Duct-BTM.
Projection lens and Assembly Panel-Prism removal
- Remove four screws and remove projection lens.
- Remove three screws and remove Assembly Panel-Prism.
Caution : Don't
disassemble Assembly-Panel-Prism other wise parts may damaged.
