- Press Menu/Exit and then press [ < / > ] until the SYSTEM SETUP: Advanced menu is highlighted.
- Press [DN] to highlight Lamp Settings and press MODE/ENTER. The Lamp Settings page displays.
- You will see the Equivalent lamp hour information displaying on the menu.
- To leave the menu, press Menu/Exit. You can also get the lamp hour information on the INFORMATION menu.
EXTENDING LAMP LIFE
Using Economic mode reduces system noise and power
consumption by 20%. If the Economic mode is selected, the light output will be
reduced and result in darker projected pictures.
Setting the projector in Economic mode also extends the lamp
operation life.
To set Economic mode, go into the SYSTEM SETUP: Advanced >
Lamp Settings > Lamp mode menu and press [ < / > ].
REPLACING LAMP
Install a new lamp for optimal performance. If the projector
is normally run with Economic selected you may continue to operate the
projector until the next lamp warning appears.
A new lamp should be fitted to avoid the inconvenience when
the projector runs out of lamp time.
It is strongly recommended that you replace the lamp
at this stage. The lamp is a consumable item. The lamp brightness diminishes
with use. This is normal lamp behavior. You can replace the lamp whenever you
notice that the brightness level has significantly diminished.
“XXXX” shown in the above messages are numbers that vary
depending on different models,

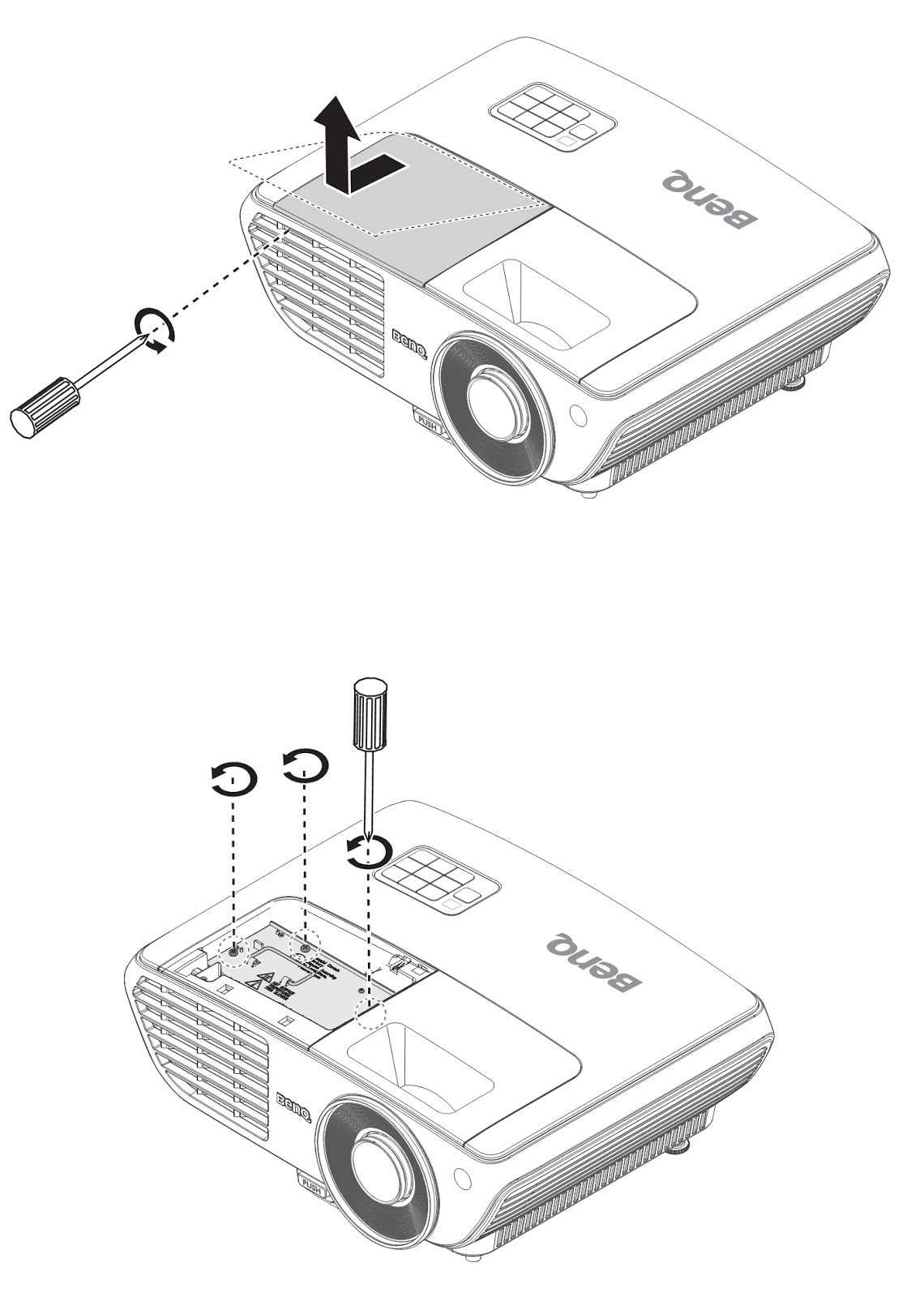

REPLACING THE LAMP
- Turn the power off and disconnect the projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.
- Loosen the captive screw from the front.
- Remove the lamp compartment cover as shown.
- Loosen the three captive screws that secure the lamp.
- Do not turn the power on with the lamp cover removed.
- Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector.
* Do not place the lamp in locations where water might splash
on it, children can reach it, or near flammable materials.
* Do not insert your hands into the projector after the lamp
is removed. If you touch the optical components inside, it could cause color
unevenness and distortion of the projected images.
- Insert the new lamp into the lamp compartment and make sure it fits in the projector. Ensure the connectors are aligned. If you experience resistance, lift the lamp and start again.
- Tighten the screws that secure the lamp.
* Do not over tighten the screw.
- Ensure the handle is fully laid flat and locked in place.
- Replace the lamp compartment cover on the projector and tighten the captive screw.
RESETTING THE LAMP TIMER
- After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Advanced > Lamp Settings menu.
- Press MODE/ENTER. The Lamp Settings page displays.
- Press to highlight Reset lamp timer and press MODE/ENTER.
- A warning message displays asking if you want to reset the lamp timer.
- Highlight Reset and press MODE/ENTER. The lamp time will be reset to '0'.
