DAEWOO DPC0720 - 7" LCD COLOR MONITOR & DVD PLAYER - BATTERY CHARGER & HV-BOARD - SCHEMATIC DIAGRAM - TROUBLESHOOTING CHART

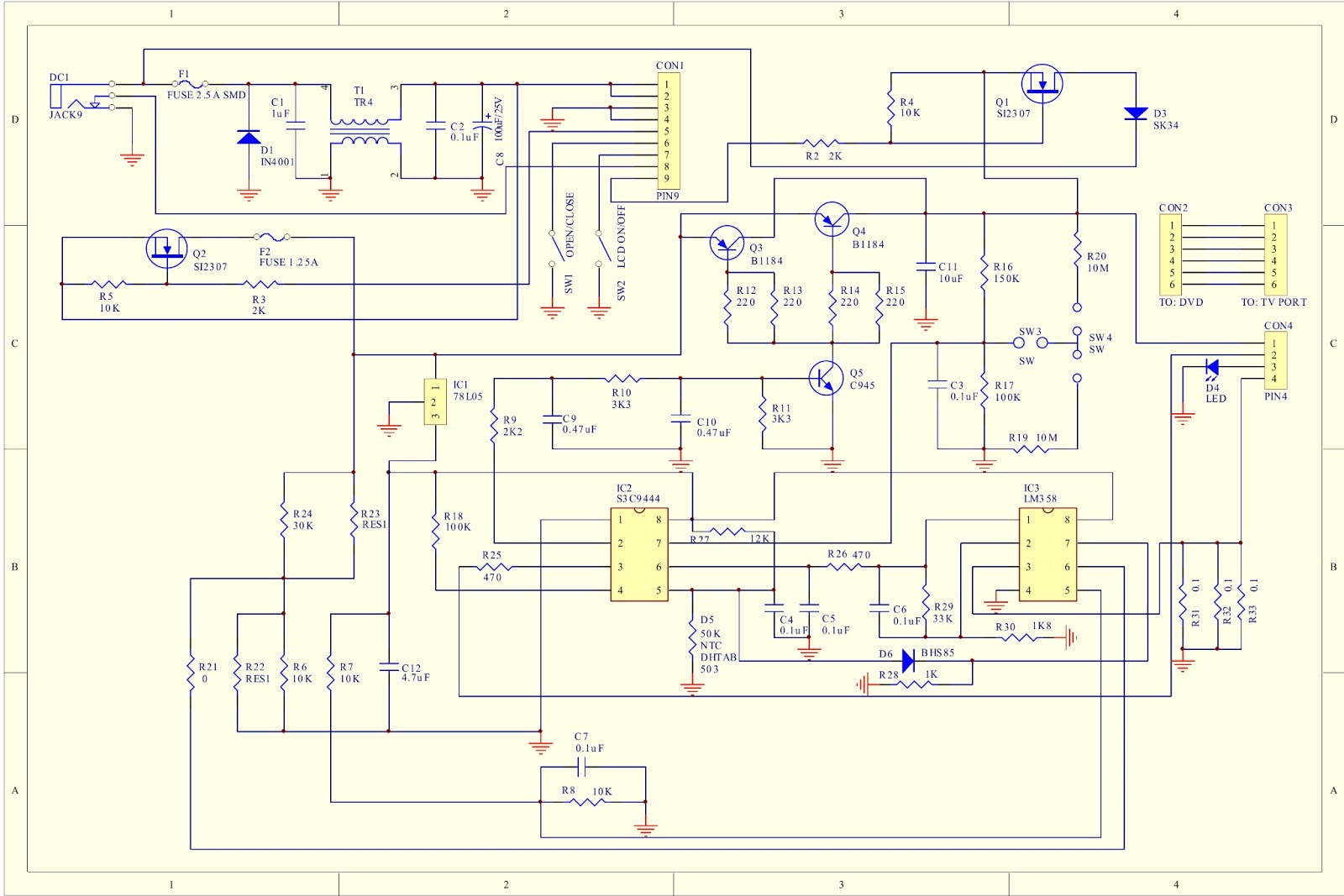

BATTERY CHARGER [SCHEMATIC] {Click on images to Enlarge}

PCB [BATTERY CHARGER - TOP VIEW]

PCB [BATTERY CHARGER - FOIL SIDE]

HV-BOARD [SCHEMATIC DIAGRAM]

TROUBLESHOOTING CHART [LCD MONITOR PART]

TROUBLESHOOTING CHART [DVD PART]
