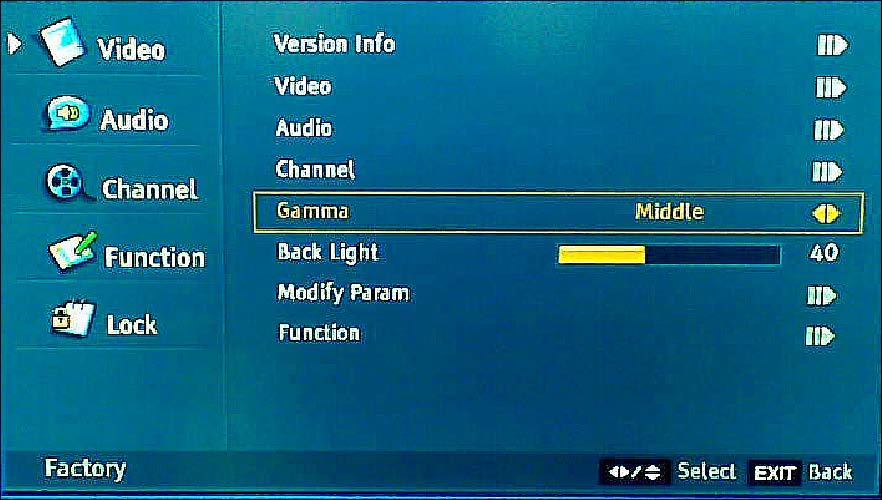

TO ENTER SERVICE MODE [FACTORY MODE]
- Press menu,
- Input 8893, Finished these operations , system will be into the factory mode menu.
- To exit this factory menu, press the botton ”Exit” in the remote control.
Version: The first
line is the model Name and the second line is current software version.
Auto Color
The option could only be used in the VGA and Component model. When we found the color in the
two models was abnormal. Then we can use the function to adjust it automatically.

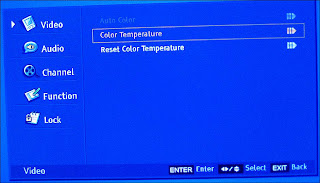

Color Temperature
The function could adjust the Color Temperature., used when debugging.
Compression: Compression style. RF: atv
line: AV/S-Video/YPbPr/VGA
Compression Factor: Compression state.
Downmix: output model. MTS System: used when debugging. The
parameters only used when debugging, no need to be modified.
Range
Scan: The function could make it to search the channels by differentiation the
analog and digital channels.
Single RF Scan: Search channels in the frequency scope set in
advance.
Factory
Scan: According to ANTENNA-ANALOG-ANTENNA-DIGITAL---CABLE ANALOG--CABLE-
DIGITAL to search channels, used only in project debugging.
Tuner Diagnostic: Project debugging setting, used to inspect
the audio function.
Gamma: Bright GAMMA 0.8
Middle: default settings in the
program Dark: GAMMA1.2
Back-light:
adjust the back-light.
Burning Mode: Turn it
“ON” to enter the aging model, This is for factory run-in testing. The screen
would display red, green, blue and black screen repeatedly. Each color screen
could be exam at that time.
Clean Storage: The
function could make the model turn back to the factory default setting.
