ISP UPGRADE
- Connect between PC for ISP and Parallel port Jig though parallel port and USB cable.
- Parallel port Jig and Down-Load JIG though D-sub port.
- After set on Main board on pull the Lever at right, turn on ISP Down-Load JIG.(Push the MAIN POWER ON/OFF.)
LOC ISP MODE
- Push IN-START => IN-STOP => TILT at Service remocon in order then SET-ON LED(Green) will be blinking. # If ST-BY(Red) blinks, please push TILT key once.
LOC DOWNLOAD
- After LED checking, execute "WISP" program.
- Compare LOC version in BOM with version of hexfile.
- Push "Browse…" in WISP program and select hex file.(1)
- Push "Auto Execute" after loading file.(2)
- After Writing Flash memory, check OK message. (3)
- After finishing ISP, turn OFF Main Power AC switch and then turn ON the switch.
- Red LED is blinking during writing default value in EEPROM(24C32) after turn on the switch.
- ALL LOC ISP process is finished when Red LED is off and Green LED is ON.
- After ISP, automatically input source change "AV2" and II_SW set to "0")
- As soon as turn on AC power, push Send quickly and again. Check the following message in ISP status. # If ISP status is not ready, try again from AC power on.

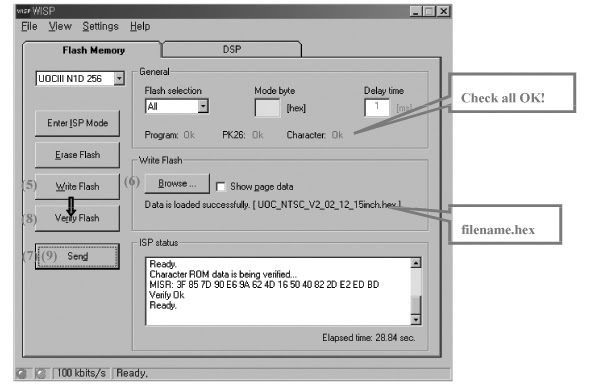

- After Entering ISP mode, Push Erase Flash and Send. (Take turns (1)~(4) ). # If Erase Flash is not OK, try again Erase Flash.
- After Erase Flash, Push Write Flash. Then select hex file after push Browse. Check file loading. Push Send and wait for writing flash. (Take turns (5)~(7) )
- Push Verify Flash and Send.(Take turns (8)~(9).) Finally, Turn off and on Main AC Power and wait for ending LED blinking.
SEDNA ISP MODE
- Push IN-START => IN-STOP => TILT => TILT at Service remocon in order then ST-BY(Red) will be blinking. ** If SET-ON LED(Green) blinks, please push TILT key once.
SEDNA DOWNLOAD
- After LED checking, execute "ISP_Tool" program.
- Push Identity and check connection message.
- Push "Select Intel HEX File" and select hex file.(1)
- Push "Erase" => "Program" => "Verify" => "Restart System" after loading file. (Take turns (2)~(5) ).
- Check whether each stage (2)~(5) is successful in message box.
- After finishing ISP, turn OFF Main Power AC switch and then turn ON the switch.
