FUJITSU - PDS5003W_PDS5004W _ Disassembly_ Contn:

                                             [4]

contn:

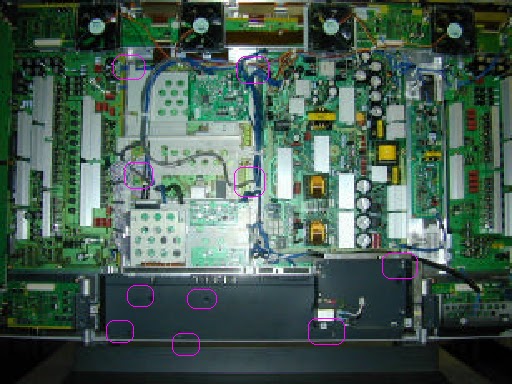

REMOVING DATA DRIVE : UPPER RIGHT PCB

• Remove rear case.
• Remove Saving Power PCB.

• Remove marked connectors.

• Remove 5 screws and Upper Right Data Drive PCB.

[view after Data Drive removed]

REMOVING LOWER RIGHT DATA DRIVE PCB.

• Remove rear case
• Remove the PFC PCB

• Disconnect marked connectors.

• Remove 8 screws.

• Remove 2 screws.

• Remove marked connector.

• Remove one screw and Saving Power PCB.

• Remove 4 screws and stand support.

• Remove marked connectors.

• Remove 5 screws and Lower Right Data Drive PCB.

[view after Lower Right Data drive PCB removed]
