HOW TO REPLACE LAMP TO SAMSUNG LW-20 LW17 SERIES LCD TVs



Universal remote codes to check with this set are [10812, 10054, 10060, 10702, 10178, 10030, 10056, 10650, 10766, 10814, 11060] {1004, 1009, 1012, 1013, 1014, 1015, 1025, 1046, 1056, 1065, 1069, 1078, 1083, 1102, 1103, 1104, 1123, 1124, 1183, 1184, 1187, 1194, 1205, 1207}
  • Take out the panel from the TV.  [refer previous post for details]

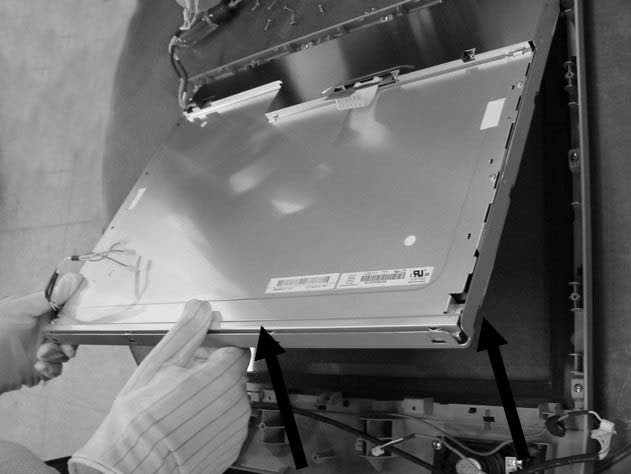

  • After confirm there is nothing on the desk, turn the LCD module over and put it on a flat desk set to the ground.
  • Remove 2 screws for the lamp unit.

  • Slide the lamp unit out. Please take out the lamp unit from the LCD module.
  • Fix the new lamp units on the LCD module : opposite process.
Reassembly procedures are in the reverse order of disassembly procedures.
