LG 32LC41 - 32LC42 - 32LC43 - 32LC44 - S/W PROGRAM DOWNLOAD METHOD - 2



DOWNLOAD METHOD -2 [Download method - 1 by previous post]
  • Download method 2 (AV Plate Ass’y)
  • Push S/W ‘ON" (connect SCL to GND using switch at Jig) and connect the download jig to D-sub jack.
  • Supply the power (Stand-by 5V) and wait for 3 seconds.
  • Push the S/W off (Disconnect SCL to GND using switch at jig).

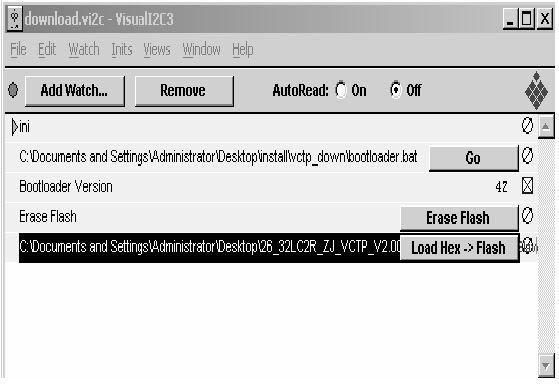

  • Execute ‘Download.vi2c’ program in PC, then a main widow will be opened.
  • Double click the blue box and confirm "Bootloader Version" as 42.
  • Click the "Erase Flash" button.
  • Double click the download file low then, "edit" window will be opened.


  • Click the choice button I n the "edit window", then "file choice window’ will be opened.
  • Choose the Hex file in folder and execute downloading with click "open button".
  • Click OK button at the "edit window"
  • Under Downloading progress

  • If download is failed, for example "No acknowledge from slave", execute download again from (1).
Download Method -3 Follows by next post.
