LG 55LM6700 WI FI TEST DIMMING FUNCTION CHECK MAJIC MOTION REMOTE CONTROL CHECK 3D FUNCTION CHECK AND MORE

DIMMING FUNCTION CHECK

• Turn on TV and push the "Tilt" Key on Remote control in Power Only Mode.
• At the Local Dimming mode, module Edge Backlight moving right to left Back light of IOP module moving.
• Confirm the Local Dimming mode
•  Press "exit" Key

3D FUNCTION TEST

• (Pattern Generator MSHG-600, MSPG-6100[Support HDMI1.4]):  HDMI mode No. 872 , pattern No.83
• Input 3D test pattern like below.

• When 3D OSD appear automatically, then select OK key.
• Don't wear a 3D Glasses, check the picture like below.

Wi-Fi TEST

• Turn on TV.

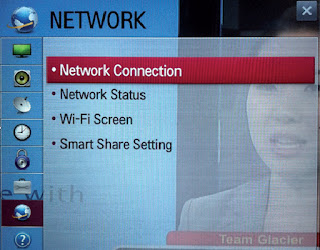

• Select Network Connection option in Network Menu.
• Select Start Connection button in Network Connection.

• If the system finds any AP like below PIC, it is working well.

MAGIC MOTION REMOTE CONTROL CHECK

• Equipment : RF Remote control for test, IR-KEY-Code Remote control for test.
• You must confirm the battery power of RF-Remote control before test(recommend that change the battery per every lot)

Sequence (test)

1. If you select the "Start(OK)" key on the Adjustment remote control, you can pairing with the TV SET.
2. You can check the cursor on the TV Screen, when select the "OK" key on the Adjustment remote control.
3. You must remove the pairing with the TV Set by select "OK" key + "Mute" key on the Adjustment remote control.

Outgoing condition Configuration

• When pressing IN-STOP key by Service remote control, Red LED are blinked alternatively.
• And then automatically turn off.  (Must not AC power OFF during blinking).
