DAEWOO - DSP 5012LXS _ PDP MONITOR _ POWER ADJUSTMENTS & ADJUSTING POINTS



POWER ADJUSTMENTS


# Video pattern condition : 100 IRE Full White Pattern
# POWER PCB Adjustments mean that you should set the following 2-type power voltages to the values which were already adjusted by PDP module (LG Module) maker. Therefore, if there are some problems in picture after adjusting, you should classify that PDP module as a fault and contact to PDP module maker.


Vsus (SUSTAIN Voltage) : Discharge Sustain Voltage.
Measurement equipment : Digital Volt Meter ( DC Volt mode )

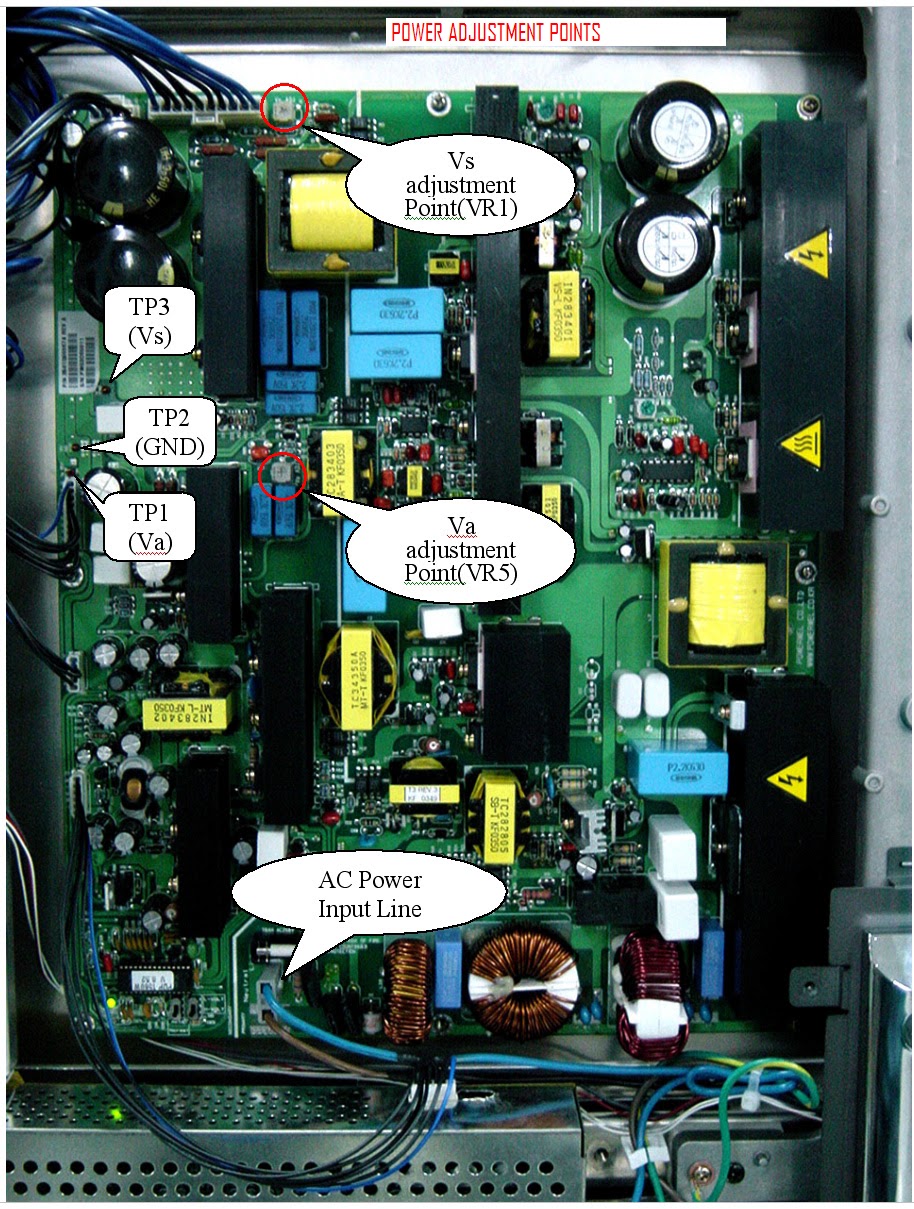

  • Adjusting TP : TP3
  • Adjusting Location : VR1
  • Adjusting Voltage : Voltage which is written in Label which is at upper center side of PDP Module(Vs). (Typical Voltage : 192 V).

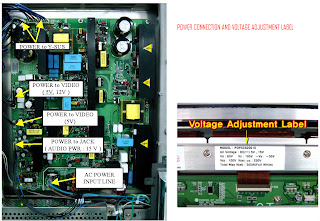

Power Connection and Voltage Adjustment Label
Vadd (ADDRESS Voltage) : DATA Input Voltage
Measurement equipment : Digital Volt Meter (DC Volt mode)
  • Adjusting TP : TP1.
  • Adjusting Location : VR5.
  • Optimum Adjusting Voltage : Voltage which is written in Label which is at upper center side of PDP Module(Va). (Typical Voltage : 60V).
