DISASSEMBLE
- Lay the LCD-TV on a flat, soft and clean surface.
- Remove the hinge cover as the arrowheads.

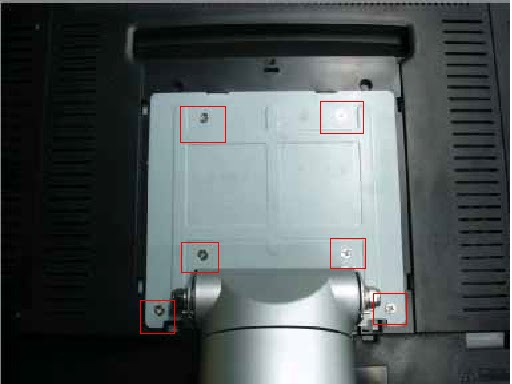

- Remove 6 screws

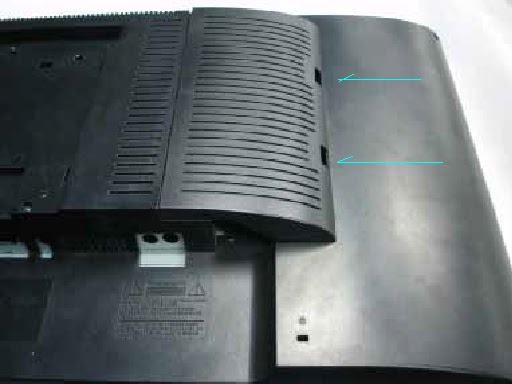

- Push the clips as the arrowheads.
- Remove the 6 screws and remove the back cover.
- Remove the 6 screws and remove the chin.

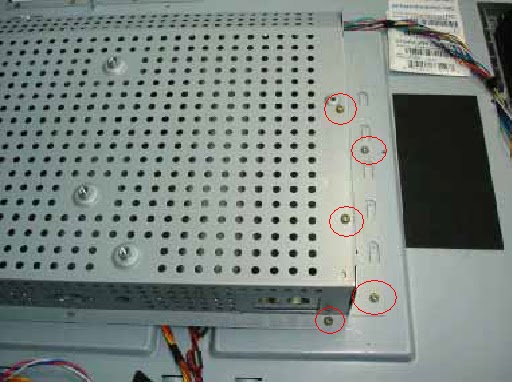

- Remove the 6 screws and remove the shield.
- Remove the 4 screws, disconnect the wire harness, and remove the main board.
- Remove 6 screws, remove wire harness, and remove power board.

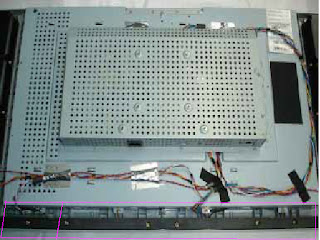

- Remove 14 screws to remove the main frame.
- Remove 16 screws to remove speakers and bezel.
